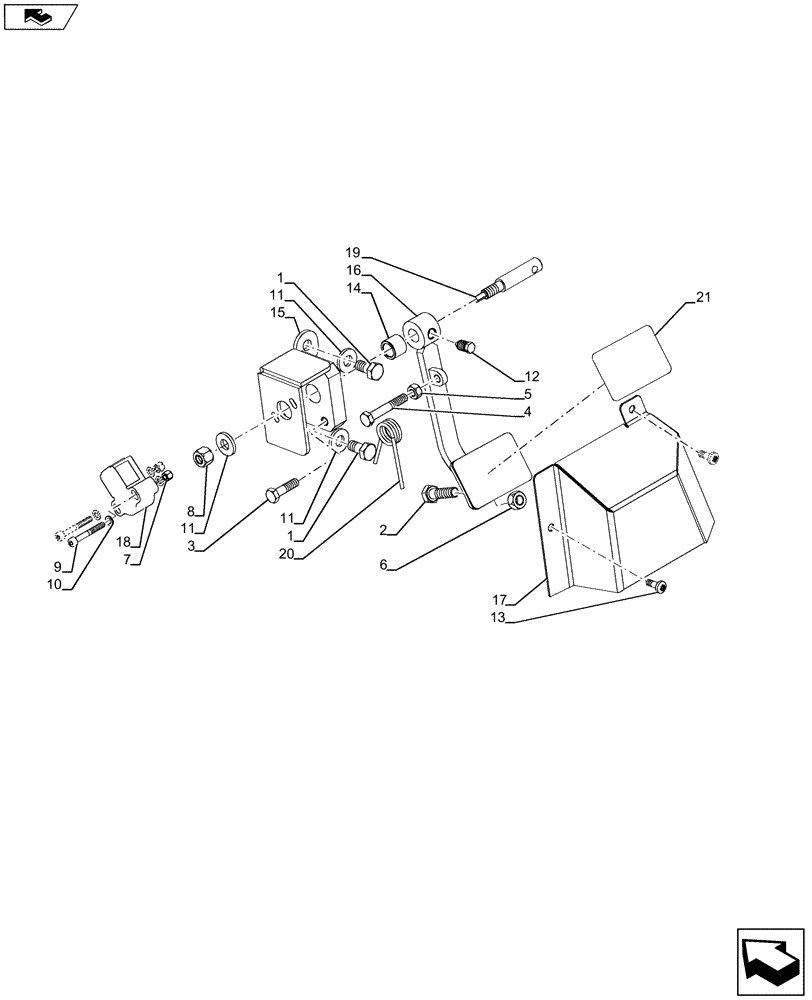

Запчасти Case 2050M LT (90.160.AS[01]) - PEDAL DECELERATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

2

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

4

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

5

825-1008

NUT,M8, Cl 8

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

832-10405

NUT,M5 x .8, Cl 8

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

9

864-5040

HEX SOC SCREW,M5 x 40mm, Cl 8.8

2шт.

10

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

11

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

12

569475

SCREW

M10

1шт.

13

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

14

79060774

BUSHING

1шт.

15

84478656

MOUNT

Control

1шт.

16

84478660

PEDAL

Decelerator

1шт.

17

47496398

PLATE

Control Cover

1шт.

18

87337478

SENSOR

Rotary Throttle

1шт.

19

87378252

ROD

Sensor

1шт.

20

380483A2

SPRING

Throttle Return

1шт.

21

84196923

ANTI-SKID STRIP

Bulk Cut To Length 425mm

1шт.
