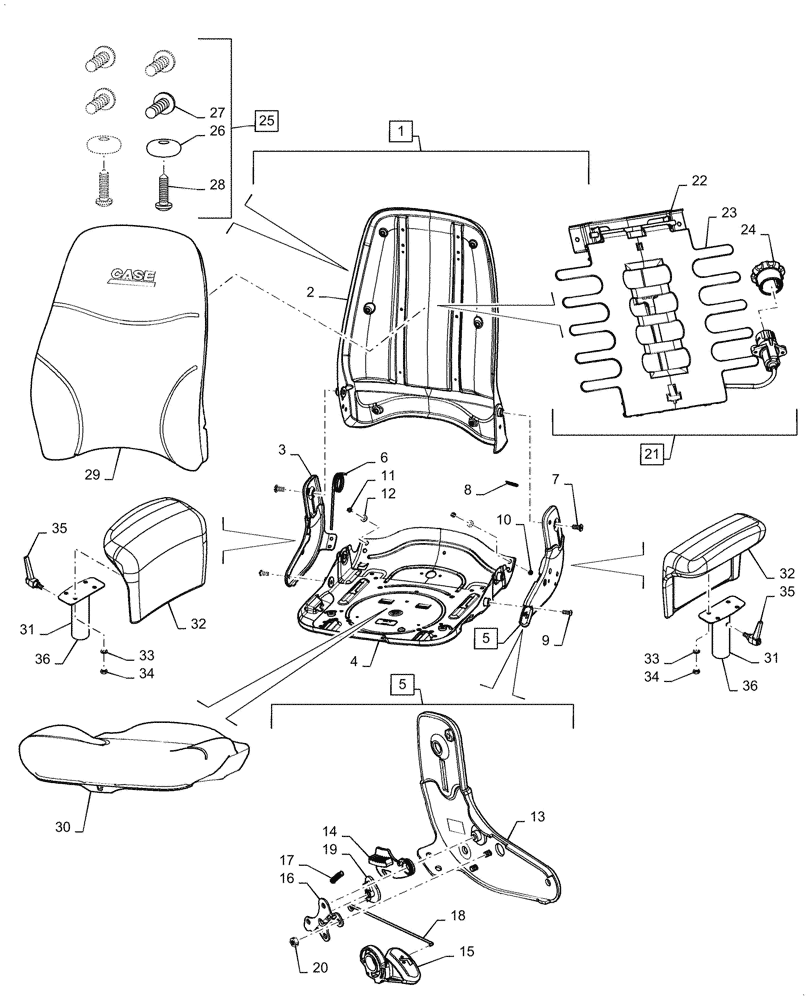

Запчасти Case 2050M LT (90.124.AE[02]) - SEAT, UPPER, CLOTH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47425395

KIT

Seat Top Kit, Incl 2 - 19

1шт.

2

NSS

NOT SOLD SEPARAT

Back Rest, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

RH, Side Bracket, Incl 1

1шт.

4

NSS

NOT SOLD SEPARAT

Seat Pan, Incl in 1

1шт.

5

47425420

DRIVER SEAT

Kit, RH, Recliner Assy, Incl Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Spring, Back Tilt, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Button Head, Incl in 1

2шт.

8

NSS

NOT SOLD SEPARAT

Lumbar Plug. Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Mounting Screws, M8 x 1.25mm x 20mm L, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

Mounting Screws, Incl in 1

4шт.

11

NSS

NOT SOLD SEPARAT

Nut, Centerlock, M6 x 1.0, Incl in 1

4шт.

12

NSS

NOT SOLD SEPARAT

Washer, Flat, 7.1mm ID x 15.8mm OD, Incl in 1

4шт.

13

NSS

NOT SOLD SEPARAT

LH, Recliner Bracket, Incl in 1 and 5

1шт.

14

NSS

NOT SOLD SEPARAT

Latch, Incl in 1 and 5

1шт.

15

47425448

KNOB,Recliner, Seat

Pull Knob, Incl in 1 and 5

1шт.

16

NSS

NOT SOLD SEPARAT

Retaining Bracket, Incl in 1 and 5

1шт.

17

NSS

NOT SOLD SEPARAT

Spring, Incl in 1 and 5

1шт.

18

NSS

NOT SOLD SEPARAT

Reclinier Rod, Incl in 1 and 5

1шт.

19

NSS

NOT SOLD SEPARAT

Cam Latch, Inlc in 1 and 5

1шт.

20

NSS

NOT SOLD SEPARAT

Nut, Centerlock, Incl in 1 and 5

2шт.

21

47425503

KIT

Lumbar, Incl 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

Lumbar Bracket, Incl in 21

1шт.

23

NSS

NOT SOLD SEPARAT

Lumbar Plate, Incl in 21

1шт.

24

47425449

SERVICE KIT

Knob, Lumbar Adjustment, Incl in 21

1шт.

25

47425391

KIT

Cushion Mounting Hardware, Incl 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

Washer, Incl in 25

2шт.

27

NSS

NOT SOLD SEPARAT

Phillips Pan Head Screw, Flat Tip, Incl in 25

4шт.

28

NSS

NOT SOLD SEPARAT

Phillips Pan Head Screw, Cone Tip, Incl in 25

2шт.

29

47425363

CUSHION

Back, Cloth, Confetti-Wheat

1шт.

30

47425369

CUSHION

Seat, Cloth, Confetti-Wheat

1шт.

31

84342975

TUBE

Armrest Mount

2шт.

32

87410160

ARMREST

Pad

2шт.

33

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

34

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

35

87446967

HANDLE

Ajustable Lever

2шт.

36

47512065

PANEL

Arm Rest, Sound Absorbing

2шт.
