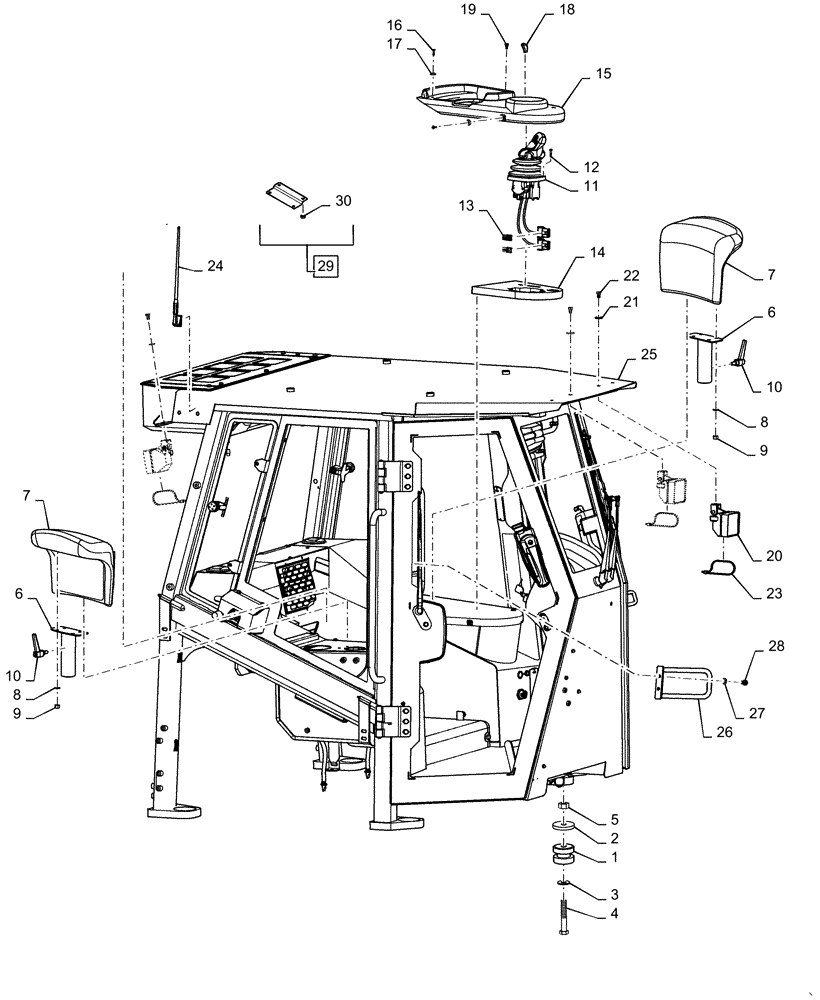

Запчасти Case 2050M LT (90.114.AQ[01]) - ROPS - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84474297

RUBBER MOUNTING

ISO 3.5"

4шт.

2

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

Spacer Flat

4шт.

3

396-41094

WASHER,23.82mm ID x 57.15mm OD x 5.56mm Thk

4шт.

4

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

5

329-1014

NUT,7/8"-9, G8

4шт.

6

84342975

TUBE

Armrest Mount

2шт.

7

87410160

ARMREST

Pad

2шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

10

87446967

HANDLE

Adjustable Lever

2шт.

11

47537867

JOYSTICK

Trans Control

1шт.

12

84187829

SCREW,Torx Pan Hd, M5 x 25mm, Cl 4.8

4шт.

13

84322203

CLIP

Wire Connector Mounting

2шт.

14

84343777

FOAM

LH

1шт.

15

84344641

PAD

LH

1шт.

16

87341593

SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8

M6 x 20 Oval Countersunk

4шт.

17

87475892

CUP WASHER

Nylon

4шт.

18

116756A1

BUTTON

Control Knob

1шт.

19

A161780

BUMPER

Rubber

1шт.

20

87555142

LIGHT ASSY.,Halogen, 24V, 65W, Clear

24V 65W H3 HD

3шт.

20

47682624

WORK LAMP

LAMP, WORK, LED

3шт.

21

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

22

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

3шт.

23

L18331

CABLE TIE,375.9mm L, Nylon

15"

3шт.

24

197745A1

ANTENNA

Cloth with Air Suspension

1шт.

25

84370684

CAB

1шт.

26

47408831

HANDLE

ROPS Entry

1шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

28

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

29

47405004

BRACKET

Fire Extinguisher Mount, Incl 30

1шт.

30

86639237

NUT,Weld, M6

M6

2шт.
