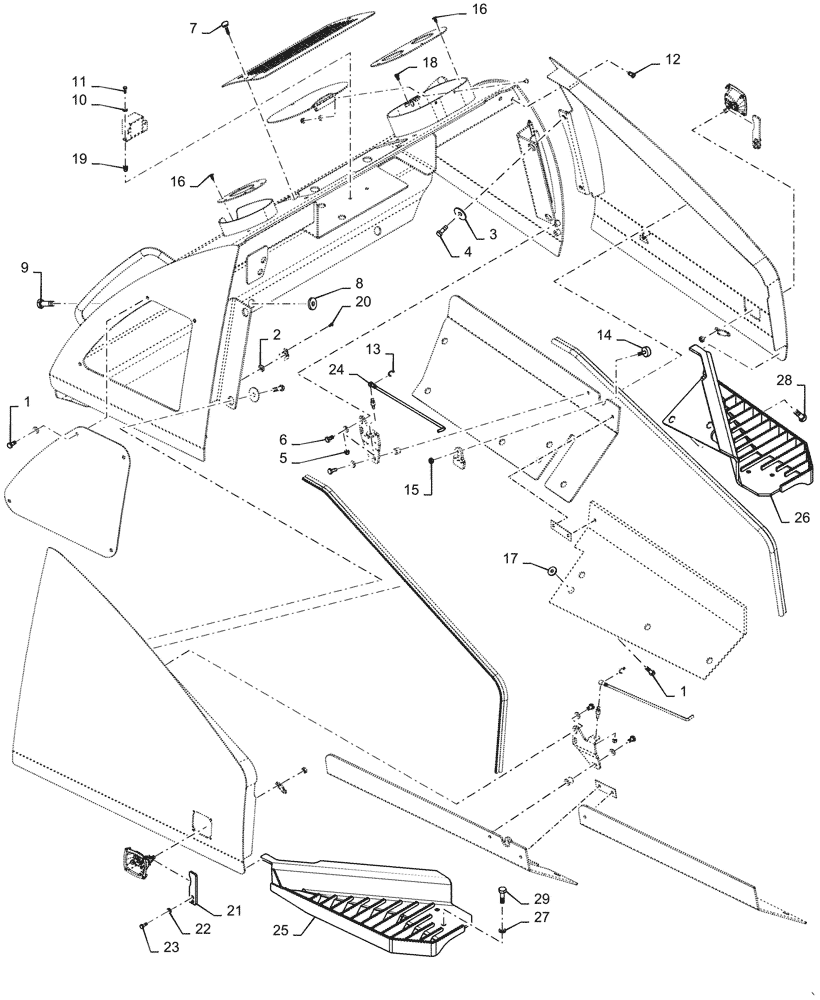

Запчасти Case 2050M LT (90.105.CL[03]) - CAB COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

28шт.

2

122958A1

SQUARE NUT

4шт.

3

87026355

WASHER,12.8mm ID x 50mm OD x 3mm Thk

8шт.

4

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

5

231-1445

NUT,5/16"-18, GB

2шт.

6

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

8шт.

7

87551004

THUMB SCREW,M8 x 48.10mm

2шт.

8

84146884

WASHER,15mm ID x 45mm OD x 6mm Thk

3шт.

9

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

10

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

11

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

12

85825181

INSERT

Threaded

2шт.

13

F44883

CLIP,DIN 71805 - S10

Plastic

2шт.

14

84469097

BUMPER

4шт.

15

86637931

JAM NUT,Jam, 5/16"-18, G5

4шт.

16

182697A1

FASTENER

Christmas Tree

14шт.

17

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

24шт.

18

A161780

BUMPER

Rubber

2шт.

19

353127A1

INSERT

Threaded Knurled Open

2шт.

20

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

21

47491428

STRIKER PLATE

2шт.

22

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8шт.

23

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

4шт.

24

87308889

ROD

Door Prop

2шт.

25

47554373

STEP

Right Hand Cab

1шт.

26

47554416

STEP

Left Hand Cab

1шт.

27

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

10шт.

28

84246776

PREV TORQUE BOLT,Hex, M16 x 35mm, Cl 10.9

6шт.

29

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

4шт.
