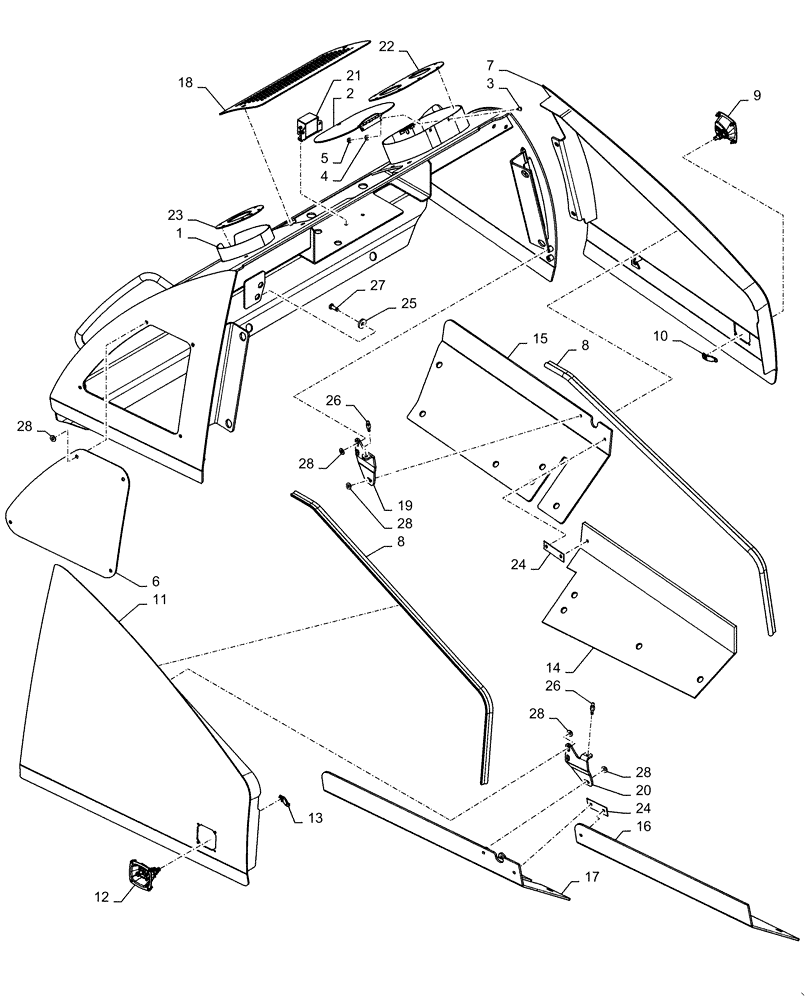

Запчасти Case 2050M LT (90.105.CL[02]) - CAB COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47616064

COVER

Rear Cab

1шт.

2

47556177

COVER

Fuel and DEF

1шт.

3

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

5

412152

NUT,M6 x 1, Cl 8.8

2шт.

6

47544494

COVER

Rear

1шт.

7

47434045

DOOR

Left Hand Rear Door

1шт.

8

235330A1

RUBBER SEAL,7620mm L

2шт.

9

47433308

LATCH

1шт.

10

47447084

LATCH

1шт.

11

47635252

DOOR

Right Hand Rear

1шт.

12

47433308

LATCH

1шт.

13

47447084

LATCH

1шт.

14

47573577

COVER

Front Left Hand Transition

1шт.

15

47573578

COVER

Rear Left Hand Transition

1шт.

16

47573574

COVER

Front Right Hand Transition

1шт.

17

47573575

COVER

Rear Right HandTransition

1шт.

18

47616055

COVER

AC

1шт.

19

47458662

MOUNTING PLATE

Left Hand Cylinder Mount

1шт.

20

47458664

MOUNTING PLATE

Right Hand Cylinder Mount

1шт.

21

L112318

ALARM

Backup

1шт.

22

84592698

SEAL

Fill Neck

1шт.

23

84545240

SEAL

Fill Neck

1шт.

24

47574177

COVER

Mounting Plate

2шт.

25

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

26

109498A1

STUD

Ball

2шт.

27

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

28

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

10шт.
