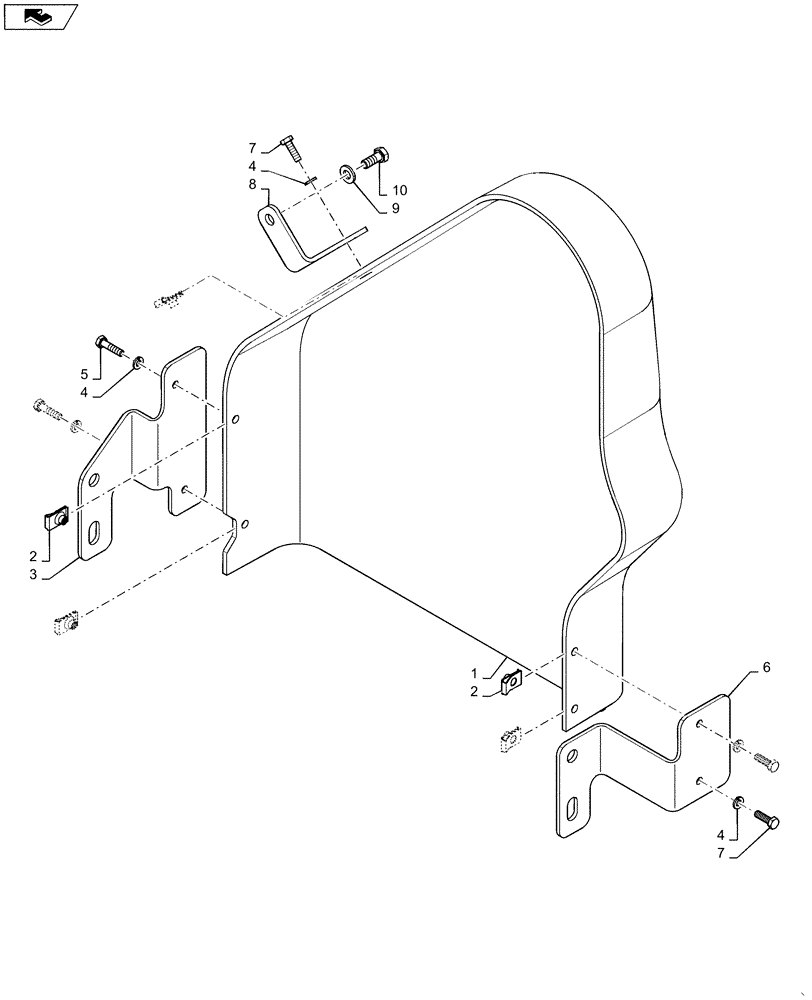

Запчасти Case 2050M LT (90.102.AN[01]) - GUARD - ENGINE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84420179

GUARD

Engine Accessory With Ac

1шт.

2

833-40306

SPRING NUT,M6, U

Spring

5шт.

3

84420175

BRACKET

Engine Guard Lh

1шт.

4

892-11006

LOCK WASHER,M6

Spring

5шт.

5

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

6

84420173

BRACKET

Engine Guard Rh

1шт.

7

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

8

47359783

BRACKET

Engine Guard Top

1шт.

9

87713131

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2mm Thk, Blk

M8 X 8.80 X 17.5 X 2.2 HTS Boron

1шт.

10

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.
