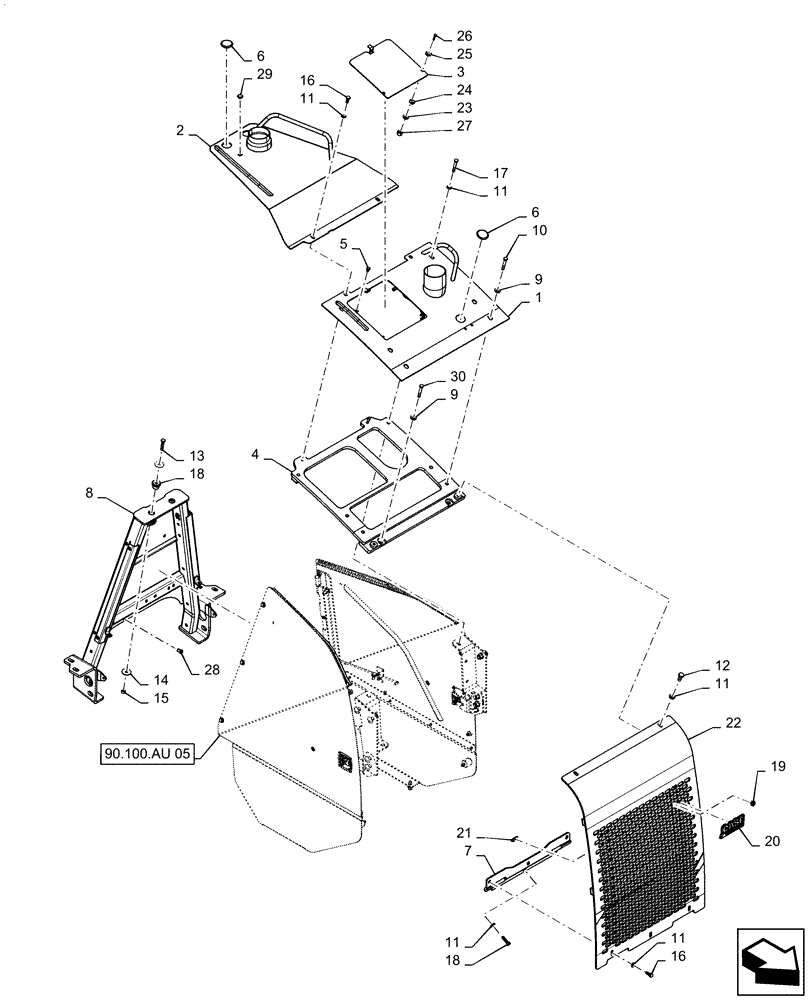

Запчасти Case 2050M LT (90.100.AU[04]) - TOP COVER, FRONT, HOOD ASN NFDC20131 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47837462

PLATE

Lower Center, CE Gray

1шт.

2

47837493

PLATE

Upper Center

1шт.

3

47844606

DOOR

DA Access, CE Gray

1шт.

4

47837393

SUPPORT

Hood, CE Gray

1шт.

5

A161780

BUMPER

Rubber

2шт.

6

14508287

PLUG

Trim, M50, Style B

3шт.

7

84495476

HINGE

Grill

1шт.

8

47756645

PLATE

With Cowl

1шт.

9

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

6шт.

10

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

4шт.

11

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

10шт.

12

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

2шт.

13

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

14

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

2шт.

15

87497918

NUT

4шт.

16

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

5шт.

17

87648725

BOLT,Hex, M12 x 75mm, Cl 10.9

2шт.

18

R29799

SHOCK ABSORBER

2шт.

19

84478049

EMBLEM

Case Medallion

1шт.

20

84494357

MOUNTING PLATE

Case Medallion

2шт.

21

86625060

PUSH-ON NUT,Self, Threading, 1/4"

Case Medallion

2шт.

22

47416198

GRILLE

1шт.

23

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

24

87440322

HINGE

2шт.

25

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

26

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

27

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

2шт.

28

85825181

INSERT

M10, Threaded Insert

7шт.

29

14507687

PLUG,20mm ID

1шт.

30

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

2шт.
