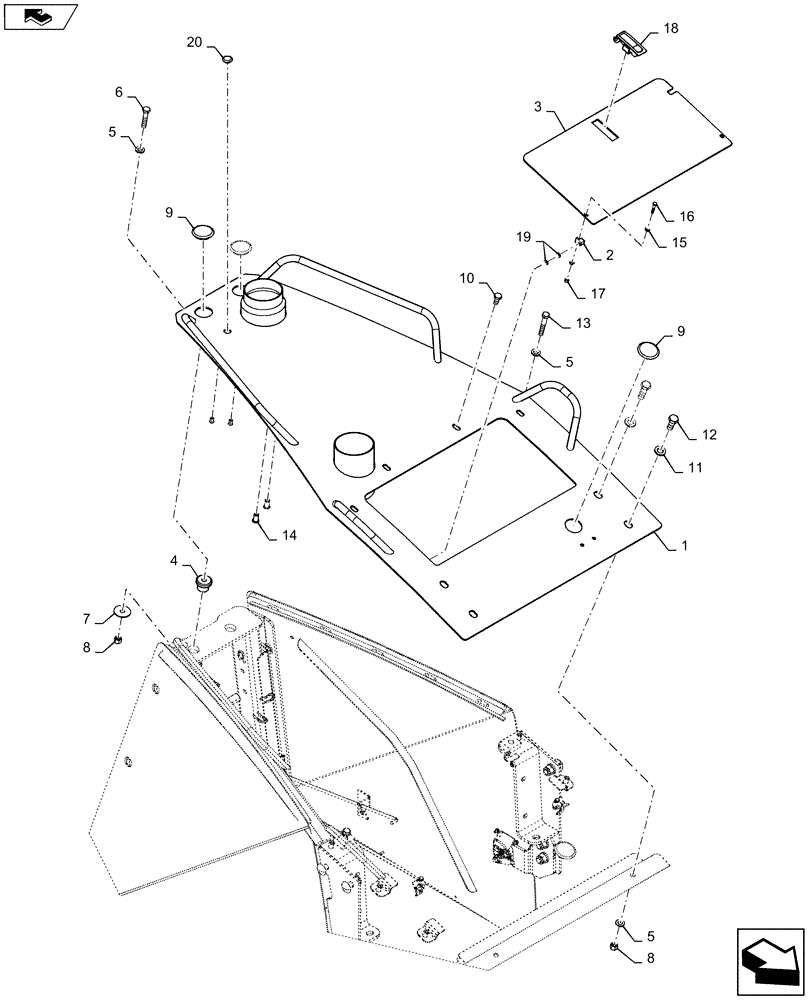

Запчасти Case 2050M LT (90.100.AU[01]) - TOP COVER, HOOD BSN NFDC20132 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47507090

PLATE

1шт.

2

87440322

HINGE

2шт.

3

84583608

ACCESS COVER

1шт.

4

R29799

SHOCK ABSORBER

2шт.

5

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

6шт.

6

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

7

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

2шт.

8

87497918

NUT

2шт.

9

14508287

PLUG

3шт.

10

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

2шт.

11

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

4шт.

12

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

4шт.

13

87648725

BOLT,Hex, M12 x 75mm, Cl 10.9

2шт.

14

85825181

INSERT

13шт.

15

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

16

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

17

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

2шт.

18

356924A3

LATCH

1шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

20

14507687

PLUG,20mm ID

1шт.
