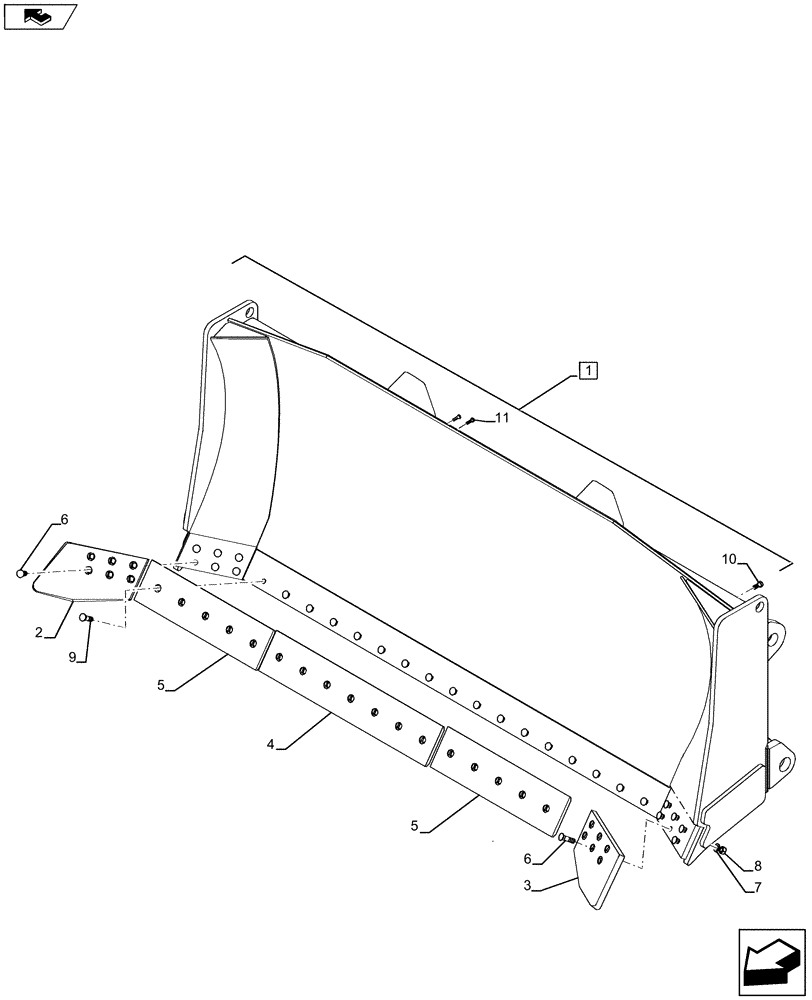

Запчасти Case 2050M LT (86.110.AD [05]) - DOZER BLADE SEMI-U 7.3 CU YD (86) - DOZER

1

47477481

DOZER BLADE

Semi-U, Incl 2 - 11

1шт.

2

76090679

CUTTING EDGE

End Bit

1шт.

3

76090680

CUTTING EDGE

End Bit

1шт.

4

84475988

CUTTING EDGE,Bolt On, 7 Hole, 200mm W x 1062.8mm L

Center

1шт.

5

84475994

CUTTING EDGE,Bolt On, 5 Hole, 200mm W x 777.8mm L

Side

2шт.

6

8273530

SCREW,Sq Hd, M20 x 1.5 x 72mm

M20 x 1.5 x 56

12шт.

7

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

29шт.

8

86015195

NUT,M20 x 1.5, Cl 10

29шт.

9

8282270

PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9

M20 x 1.5 x 53

17шт.

10

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

12шт.

11

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.
