(71.460.AB [01]) - GREASE, HOSE

Запчасти Case 2050M LT (71.460.AB [01]) - GREASE, HOSE (71) - LUBRICATION SYSTEM

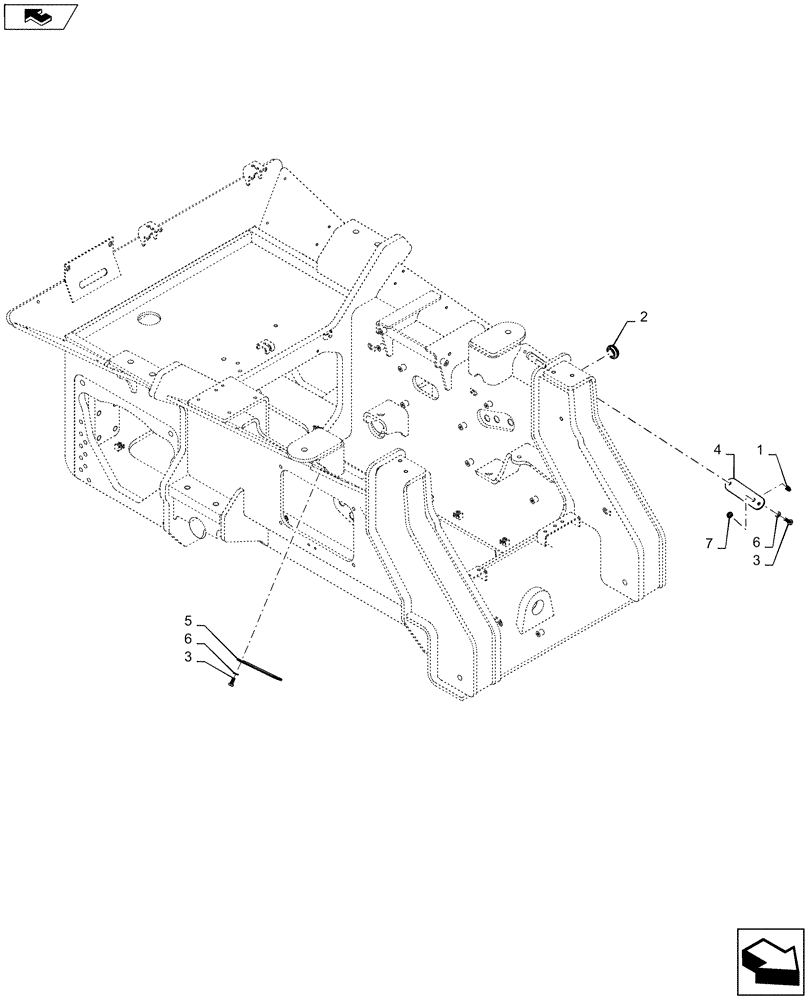

Схема запчастей Case 2050M LT - (71.460.AB [01]) - GREASE, HOSE (71) - LUBRICATION SYSTEM
6
1
6
3
4
3
5
2
home
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

2

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

47477599

PLATE

LH, Fittings Mount

1шт.

5

47477601

PLATE

RH, Fittings Mount

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

7

F53473

LOCK NUT,1/8-27 NPSM

1шт.

Выбрано товаров: 7
