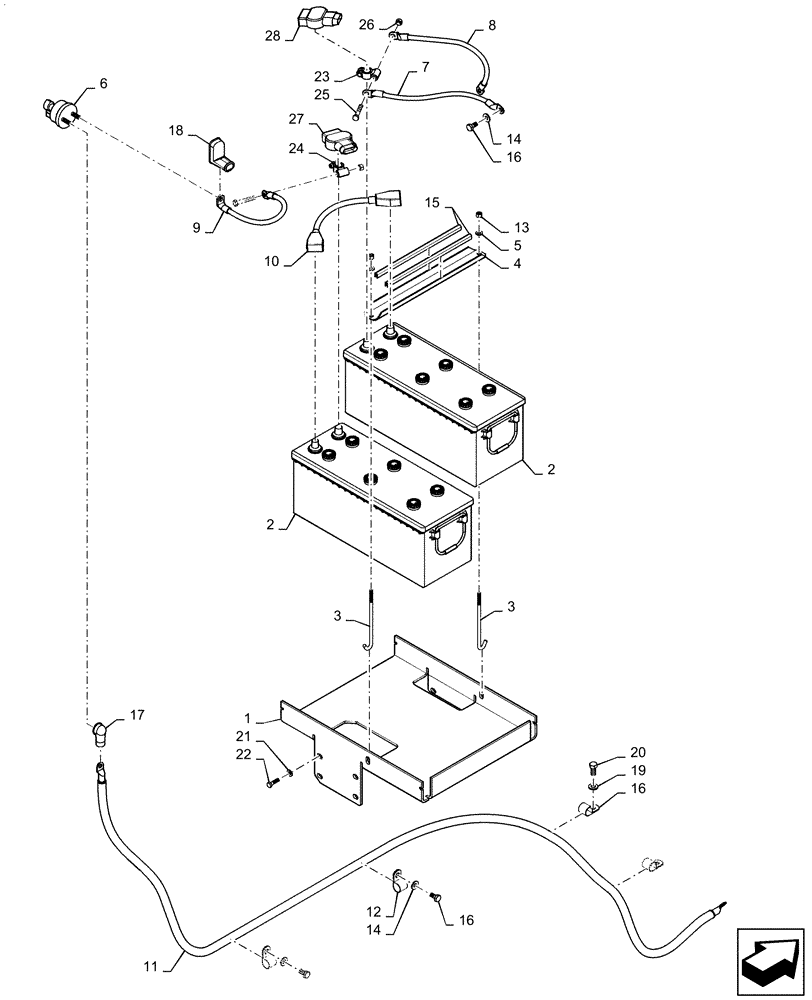

Запчасти Case 2050M LT (55.302.AG[01]) - BATTERY - TRAY & CABLES (55) - ELECTRICAL SYSTEMS

1

84376226

BATTERY TRAY

1шт.

CBCMD4W

WET BATTERY,D4, 12V, 1200 CCA

1шт.

Canada

1шт.

2

BCMD4W

WET BATTERY,D4, 12V, 1200 CCA

12V 1200CCA

2шт.

U.S.

1шт.

3

416297A1

ROD

Battery Hold Down

2шт.

4

47367208

HOLDER

Battery Bracket

1шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

6

R52278

SWITCH

Master Disconnect

1шт.

7

47693288

CABLE

Negative, Battery to Ground

1шт.

8

84540160

NEG BATTERY CABLE

To Ground

1шт.

9

47693294

CABLE

Positive, Battery to Switch

1шт.

10

47693296

CABLE

Battery to Battery

1шт.

11

47372611

ELECTRIC CABLE

Battery Positive

1шт.

12

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

4шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

14

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

15

D40442

MOLDING

Trim, Quickedge

2шт.

16

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

3шт.

17

47524103

CAP

1шт.

18

47464114

BOOT

90 Degree

1шт.

19

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

20

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

21

87713132

SPECIAL WASHER,10.7mm ID x 23mm OD x 2.2mm Thk

6шт.

22

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

6шт.

23

84360338

TERMINAL

Battery Clamp Negative

1шт.

24

84360337

TERMINAL

Battery Clamp Positive

1шт.

25

280425

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

26

425-106

NUT,3/8"-16, Cl 5

2шт.

27

47693869

COVER

Battery Cable Terminal Red

1шт.

28

47693868

COVER

Battery Cable Terminal Black

1шт.
