Запчасти Case 2050M LT (48.140.AA[02]) - FINAL DRIVE ASSEMBLY (48) - TRACKS & TRACK SUSPENSION

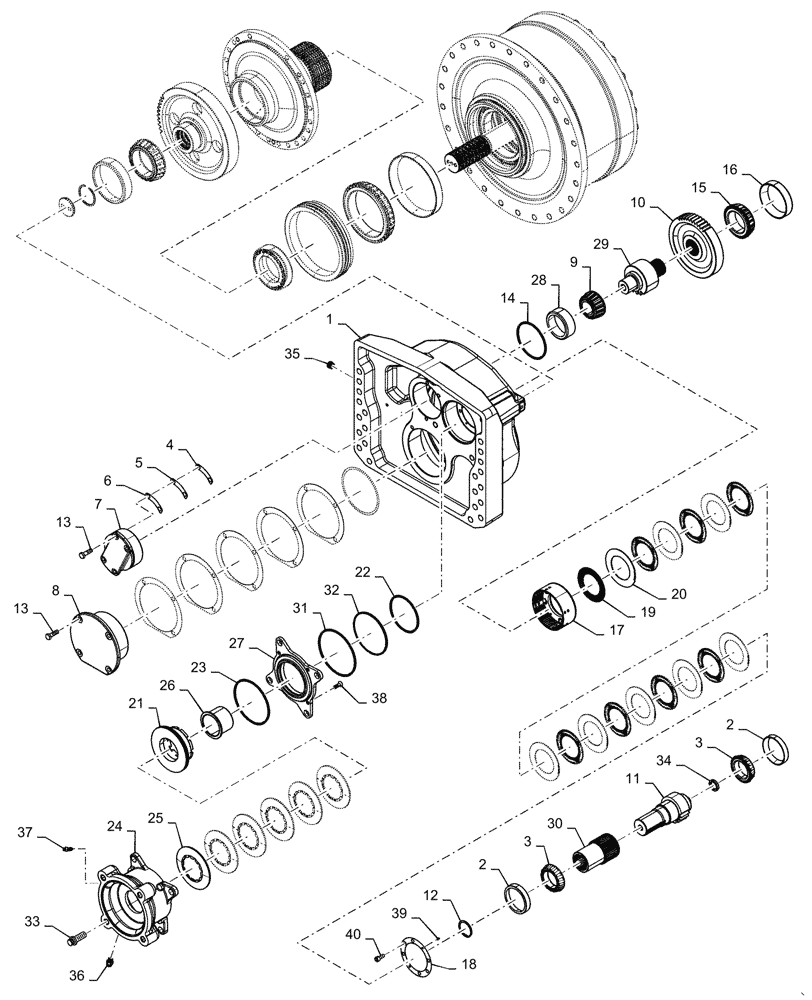

Схема запчастей Case 2050M LT - (48.140.AA[02]) - FINAL DRIVE ASSEMBLY (48) - TRACKS & TRACK SUSPENSION
36
6
12
17
13
25
18
30
40
31
26
39
10
3
14
11
5
2
9
16
23
8
27
22
20
7
21
35
13
4
29
15
2
24
3
19
28
37
34
38
33
1
32

Артикул

Название

Примечание

Количество

1

84364694

HOUSING

Final Drive

1шт.

2

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

Cup

2шт.

3

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

Cone

2шт.

4

G107613

SHIM

2шт.

5

G107614

SHIM

2шт.

6

G107615

SHIM

2шт.

7

87452193

BEARING COVER,103.162 mm ID x 132.89 mm OD x 55.1 mm

Idler Gear

1шт.

8

87452194

BEARING COVER,156.949 mm ID x 177.85 mm OD x 65 mm

Sun Gear

1шт.

9

84370392

GEAR

1шт.

10

84370385

IDLER GEAR

Driven

1шт.

11

84370375

PINION

Park Brake

1шт.

12

84163829

RING,58mm, PHC

Clip

1шт.

13

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

8шт.

14

510828

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

15

65720C91

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

Roller Cone

1шт.

16

65721C1

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

Roller Cup

1шт.

17

84323435

HOUSING

Park Brake

1шт.

18

84368146

SHIM,106mm ID x 146mm OD x 0.1mm Thk

Input Bearing

1шт.

19

84163978

DISC

Clutch Plate Friction

8шт.

20

345335A2

PLATE

Clutch Seperator

9шт.

21

84165259

PISTON

Brake

1шт.

22

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

23

385237A2

SEALING RING,3.48mm Thk x 156.59mm ID, 70 Duro

O-ring

1шт.

24

84327117

HOUSING

Parking Brake

1шт.

25

84164554

SPRING WASHER

Spring

6шт.

26

84171652

RETAINER COLLAR

Spring

1шт.

27

84538602

PLATE

Park Brake Housing

1шт.

28

84987C1

BEARING ASSY

Roller Cup

1шт.

29

84986C1

BEARING ASSY,49.21mm ID x 44.48mm W

Roller Cone

1шт.

30

84165263

SPLINED COUPLING

Park Brake

1шт.

31

87591920

O-RING,0.139" Thk x 6.48" ID, -260, Cl 7, 75 Duro

1шт.

32

87591919

O-RING,0.139" Thk x 5.984" ID, -258, Cl 7, 75 Duro

1шт.

33

868-20050

12 PT SCREW,M20 x 50mm, Cl 12.9

4шт.

34

87567817

SEAL,28mm ID x 40mm OD x 7mm Thk

Internal Radial Oil

1шт.

35

87520606

PLUG

Expansion Type

2шт.

36

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

37

9832308

BLEEDER

Bleeder

1шт.

38

906037R1

HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9

4шт.

39

87495306

PIN,5mm OD x 10mm L

Dowel

2шт.

40

86625209

HEX SOC SCREW,M10 x 35mm, Cl 12.9

6шт.

Выбрано товаров: 40
