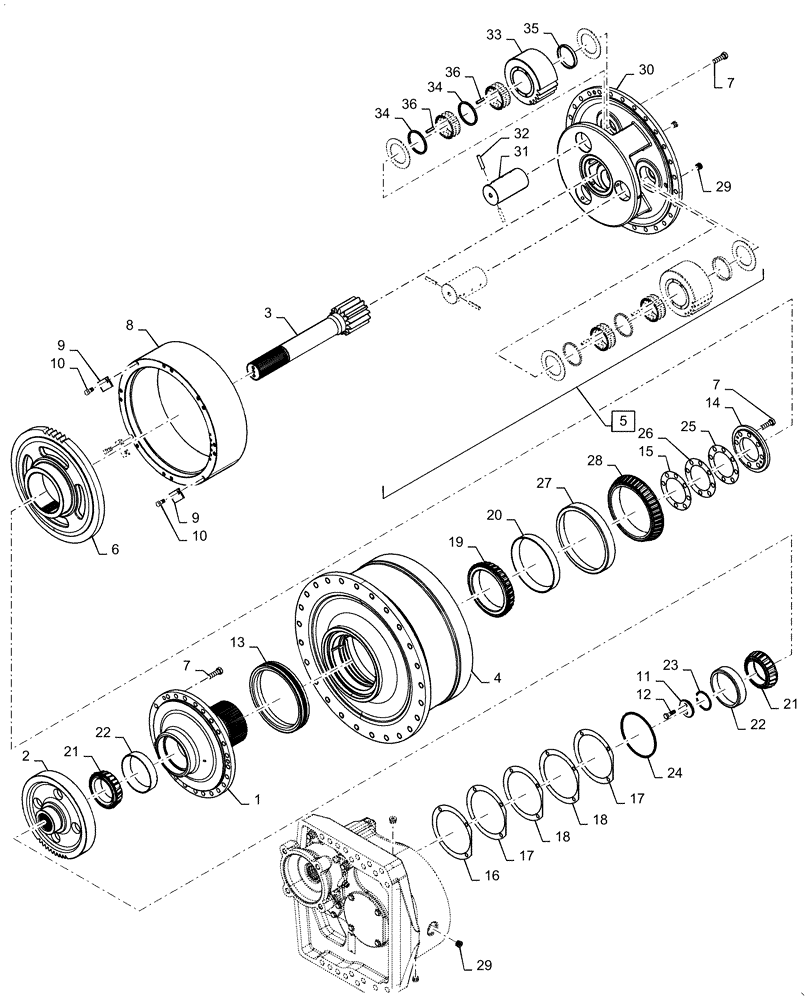

Запчасти Case 2050M LT (48.140.AA[01]) - FINAL DRIVE ASSEMBLY NARROW (48) - TRACKS & TRACK SUSPENSION

1

84165247

SPINDLE

Wheel

1шт.

2

84396207

DRIVEN GEAR

Bull

1шт.

3

84328253

SUN GEAR

Shaft

1шт.

4

84364689

HUB

Narrow Guage

1шт.

5

84327172

PLANET CARRIER

Incl 30 - 38

1шт.

6

84369514

GEAR

Ring Carrier

1шт.

7

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

57шт.

8

84299687

RING GEAR

1шт.

9

87452214

RETAINER

Ring Gear

8шт.

10

806-12025

BOLT,Hex, Lock, M12 x 25, Cl 10.9

16шт.

11

87452199

RETAINER

Sungear

1шт.

12

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

13

87751214

SEAL,240.68mm ID x 279.4mm OD x 36.5mm Thk

Face

1шт.

14

84165274

ADJUSTING PLATE

Bearing

1шт.

15

84171649

SHIM,105mm ID x 160mm OD x 0.08mm Thk

1шт.

16

87452195

SHIM

1шт.

17

87452196

SHIM

2шт.

18

87452197

SHIM

2шт.

19

90-7760T1

TAPERED BEARING,170mm ID x 38mm W

Cone

1шт.

20

90-7759T1

TAPERED BEARING,230mm OD x 31mm W

Cup

1шт.

21

87313983

BEARING ASSY,99.97mm ID x 42mm W

Cone

2шт.

22

87313985

BEARING CUP,156.97mm OD x 34mm W

Cup

2шт.

23

D32043

RING

Internal Snap

1шт.

24

14467980

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

1шт.

25

84171650

SHIM,105mm ID x 160mm OD x 0.18mm Thk

1шт.

26

84171651

SHIM,105mm ID x 160mm OD x 0.51mm Thk

1шт.

27

84369500

BEARING CUP,279.4mm OD x 36.51mm W

Tapered Roller

1шт.

28

84369495

BEARING CONE,209.55mm ID x 46.04mm W

Tapered Roller

1шт.

29

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

5шт.

30

84327814

HOUSING

Final Drive Planetary

1шт.

31

84328243

PIN,81.31mm OD x 162mm L

Plane Gear

3шт.

32

87656188

PIN

Groove

6шт.

33

84328024

PLANETARY GEAR

3шт.

34

84328245

SPACER,86.05mm ID x 95mm OD x 5.24mm L

Roller Bearing

6шт.

35

84328247

SPACER,86.05mm ID x 95.2mm OD x 10.23mm L

Planet Gear Thrust Washer

9шт.

36

A151972

ROLLER

Planet Bearing

204шт.
