(48.138.AB[05]) - UNDERCARRIAGE COVERS LT

Запчасти Case 2050M LT (48.138.AB[05]) - UNDERCARRIAGE COVERS LT (48) - TRACKS & TRACK SUSPENSION

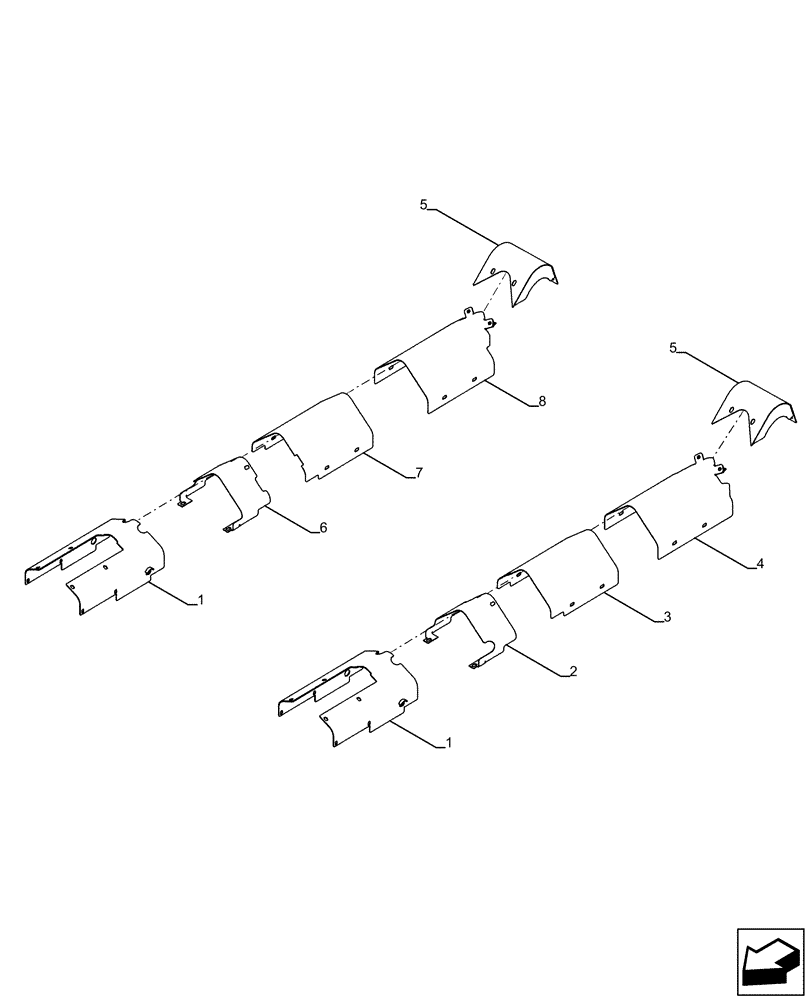

Схема запчастей Case 2050M LT - (48.138.AB[05]) - UNDERCARRIAGE COVERS LT (48) - TRACKS & TRACK SUSPENSION
1
2
8
6
1
5
3
5
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47551003

COVER

Idler

2шт.

2

84577370

COVER

LH Front Stationary

1шт.

3

84561957

COVER

LH Recoil

1шт.

4

84561945

COVER

LH Rear Track Frame

1шт.

5

84561966

COVER

Pivot Housing

2шт.

6

84577492

COVER

RH Front Stationary

1шт.

7

84564921

COVER

RH Recoil

1шт.

8

84563570

COVER

RH Rear Track Frame

1шт.
