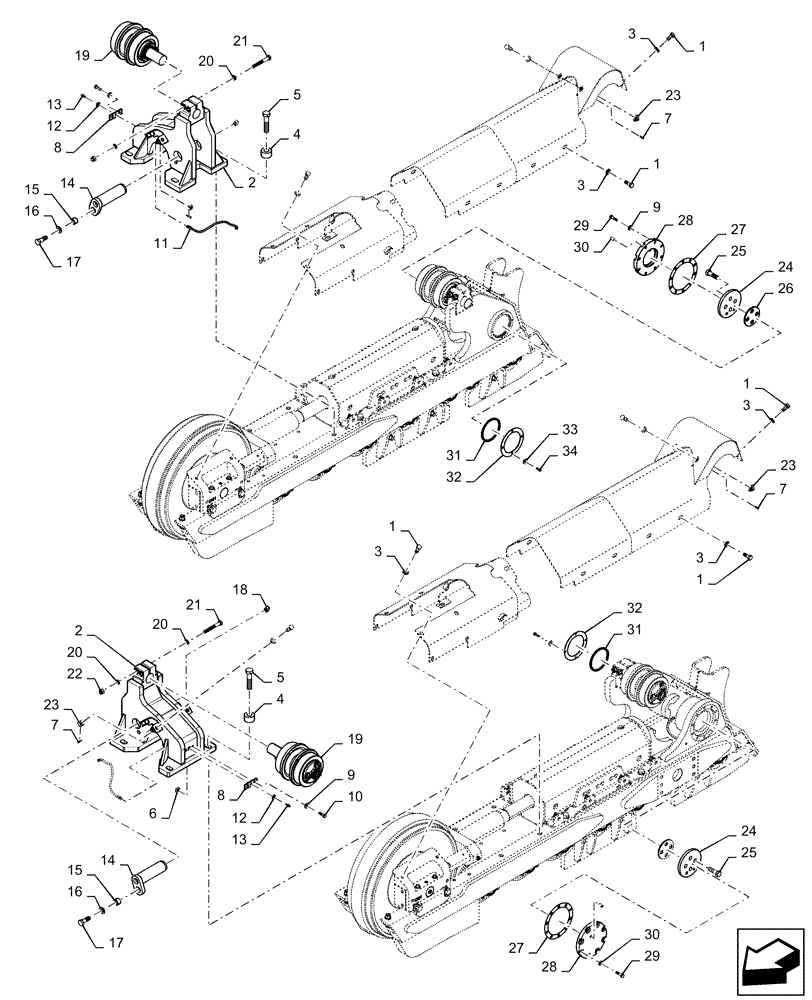

Запчасти Case 2050M LT (48.138.AB[02]) - UNDERCARRIAGE, LT (48) - TRACKS & TRACK SUSPENSION

1

87612751

BOLT,Hex, M16 x 40mm, Cl 8.8

44шт.

2

84341991

CARRIER

2шт.

3

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

44шт.

4

84341998

SPACER,25mm ID x 57.15mm OD x 33mm L

8шт.

5

84345492

BOLT,Hex, M24 x 110mm, Cl 10.9

8шт.

6

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

4шт.

7

336371A1

PIN,4.88mm OD x 14.23mm L

12шт.

8

87599553

COVER PLATE

2шт.

9

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

24шт.

10

86566268

LOCK BOLT,Prev Torque, Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

11

87567381

HOSE ASSY.

2шт.

12

F53473

LOCK NUT,1/8-27 NPSM

2шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

14

84340093

PIN,59.95mm OD x 213.1mm L

2шт.

15

87652972

BUSHING,20.6mm ID x 31.7mm OD 20.6mm H

2шт.

16

87713134

SPECIAL WASHER

2шт.

17

87563126

BOLT,Hex, M20 x 2.5 x 55mm, Cl 8.8

2шт.

18

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

2шт.

19

84312295

TRACK ROLLER

2шт.

20

87563152

WASHER,17mm ID x 26.5mm OD x 4mm Thk

8шт.

21

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

4шт.

22

86512555

NUT,M16 x 2, Cl 10

4шт.

23

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

8шт.

24

84357609

PLATE

2шт.

25

86639154

BOLT,Hex, M20 x 65mm, Cl 10.9

8шт.

26

84357709

SHIM,115mm OD x 0.8mm Thk

16шт.

27

84357660

GASKET,0.38mm Thk

2шт.

28

84357613

PLATE

2шт.

29

87015314

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

20шт.

30

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

2шт.

31

84396640

SEAL,125.1mm ID x 139.83mm OD x 6.35mm Thk

2шт.

32

84396638

RETAINER

2шт.

33

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

8шт.

34

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

8шт.
