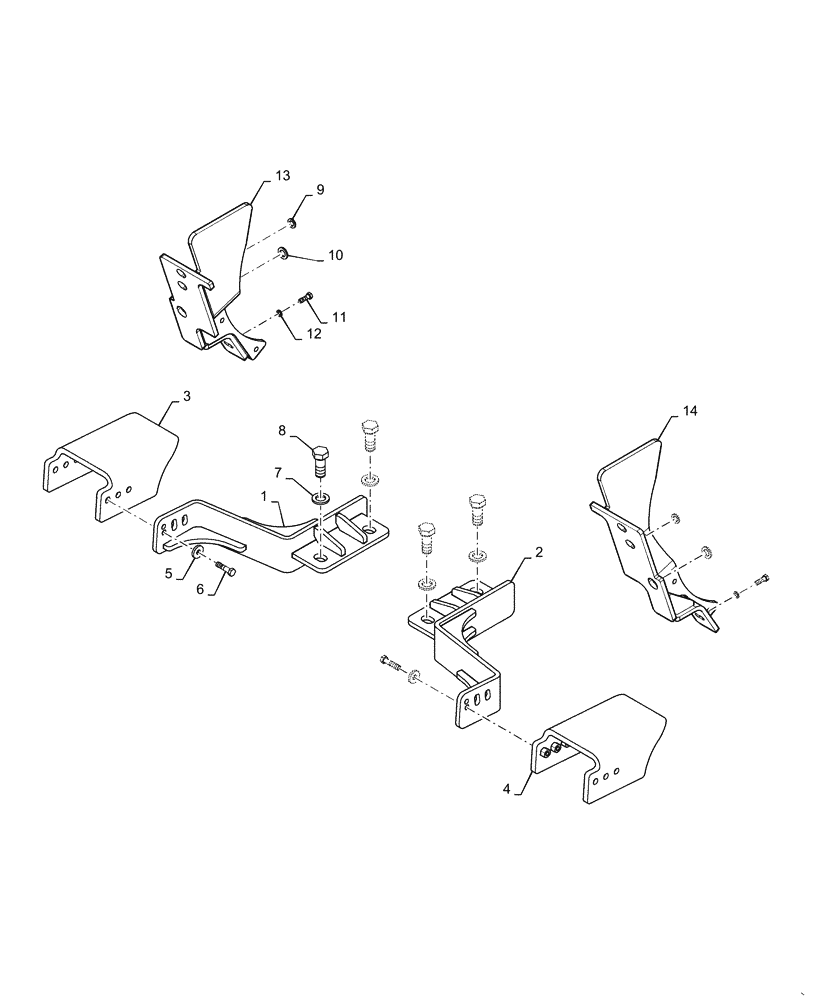

Запчасти Case 2050M LT (48.130.AM[03]) - SPROCKET GUARD (48) - TRACKS & TRACK SUSPENSION

1

47640430

BRACKET

Sprocket Cover Left Hand Wide

1шт.

1

47601603

PLATE

Sprocket Cover Left Hand Narrow

1шт.

2

47640433

BRACKET

Sprocket Cover Right Hand Wide

1шт.

2

47601607

PLATE

Sprocket Cover Right Hand Narrow

1шт.

3

47601572

GUARD

LH, Top

1шт.

4

47601575

GUARD

RH, Top

1шт.

5

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

6

84479757

BOLT,Hex, M12 x 50mm, Cl 10.9

M12 x 50 10.9

6шт.

7

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

4шт.

8

87354794

BOLT,Hex, M24 x 60mm, Cl 10.9

M24 x 60 10.9

4шт.

9

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

2шт.

10

895-30103

WASHER,M16 x 56 x 5

2шт.

11

87563128

LOCK BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

6шт.

12

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

2шт.

13

47598032

GUARD

Left Hand Side Sprocket

1шт.

14

47598034

GUARD

Right Hand Side Sprocket

1шт.
