Запчасти Case 2050M LT (48.100.AD) - TRACK LINK, KIT MASTER, CELT, CLT, ELT (48) - TRACKS & TRACK SUSPENSION

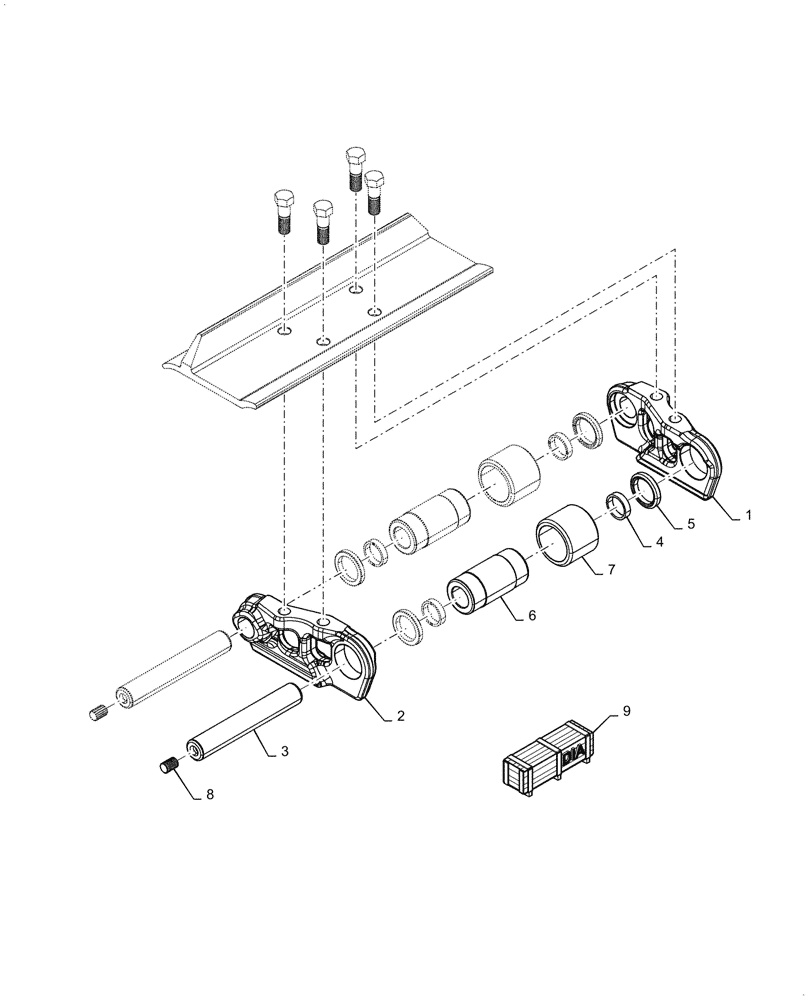

Схема запчастей Case 2050M LT - (48.100.AD) - TRACK LINK, KIT MASTER, CELT, CLT, ELT (48) - TRACKS & TRACK SUSPENSION
8
3
6
7
9
4
1
5
2

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Link, LH, Master, Pin End, Incl in 10

1шт.

2

NSS

NOT SOLD SEPARAT

Link, LH, Master, Bushing End, Incl in 10

1шт.

3

NSS

NOT SOLD SEPARAT

Link, RH, Master, Pin End, Incl in 10

1шт.

4

NSS

NOT SOLD SEPARAT

Link, RH, Master, Bushing End, Incl in 10

1шт.

5

NSS

NOT SOLD SEPARAT

Pin, Incl in 10

2шт.

6

NSS

NOT SOLD SEPARAT

Thrust Ring, Incl in 10

4шт.

7

NSS

NOT SOLD SEPARAT

Seal, Track Link, Incl in 10

4шт.

8

NSS

NOT SOLD SEPARAT

Rubber Seal, Track Link, Incl in 10

4шт.

9

NSS

NOT SOLD SEPARAT

Bushing, Advanced, Incl in 10

2шт.

10

NSS

NOT SOLD SEPARAT

Bushing, Rotating, ELT, Incl in 10

2шт.

11

NSS

NOT SOLD SEPARAT

Bushing, Standard, Incl in 10

2шт.

12

NSS

NOT SOLD SEPARAT

Oil, Plug, Track Chain Link, Incl in 10

2шт.

13

48042507

KIT

Master Link, Incl 1 - 10, Inst, 48043022

1шт.

This Kit Services Both CLT and CELT Tracks

1шт.

Выбрано товаров: 14
