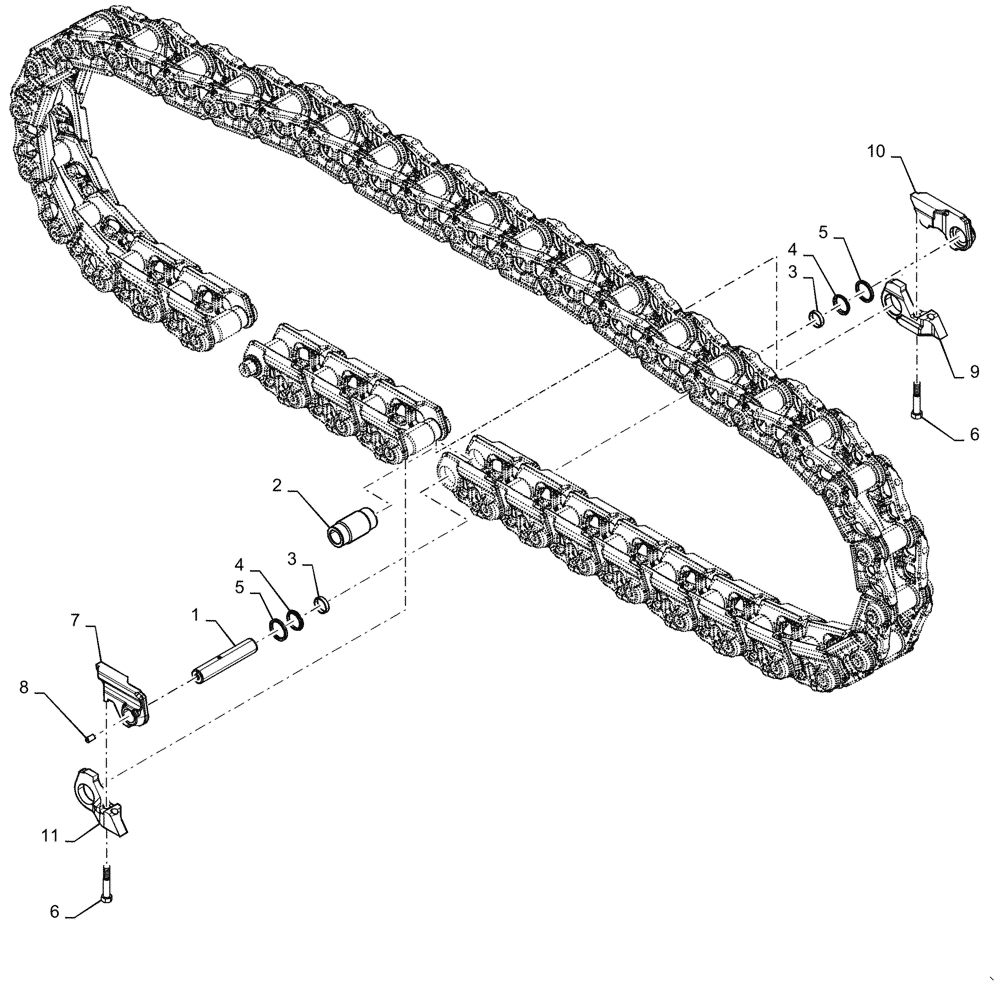

Запчасти Case 2050M LT (48.100.AD[18]) - CLT , TRACK LINK, MASTER (48) - TRACKS & TRACK SUSPENSION

1

84314570

PIN,44.49mm OD x 230mm L

Track Link

1шт.

2

84314568

BUSHING,44.85mm ID x 72.7mm OD x 146.95mm L

Track Link

1шт.

3

84314571

RING,45mm ID x 50mm OD x 10mm L

Thrust

2шт.

4

84359830

SEAL,51mm ID x 63mm OD x 9mm L

Track Link

2шт.

5

84359832

SEAL,60mm ID x 67mm OD x 10mm L

Rubber

2шт.

6

84377489

BOLT

Master Link, Track Shoe Mounting

4шт.

7

84314575

TRACK LINK

Master, Left Hand Split Pin End

1шт.

8

87582718

PLUG

Oil

1шт.

9

84377122

TRACK LINK

Master, Right Hand Split Bushing End

1шт.

10

84377130

TRACK LINK

Master, Right Hand Split Pin End

1шт.

11

84314574

TRACK LINK

Master, Left Hand Split Bushing End

1шт.
