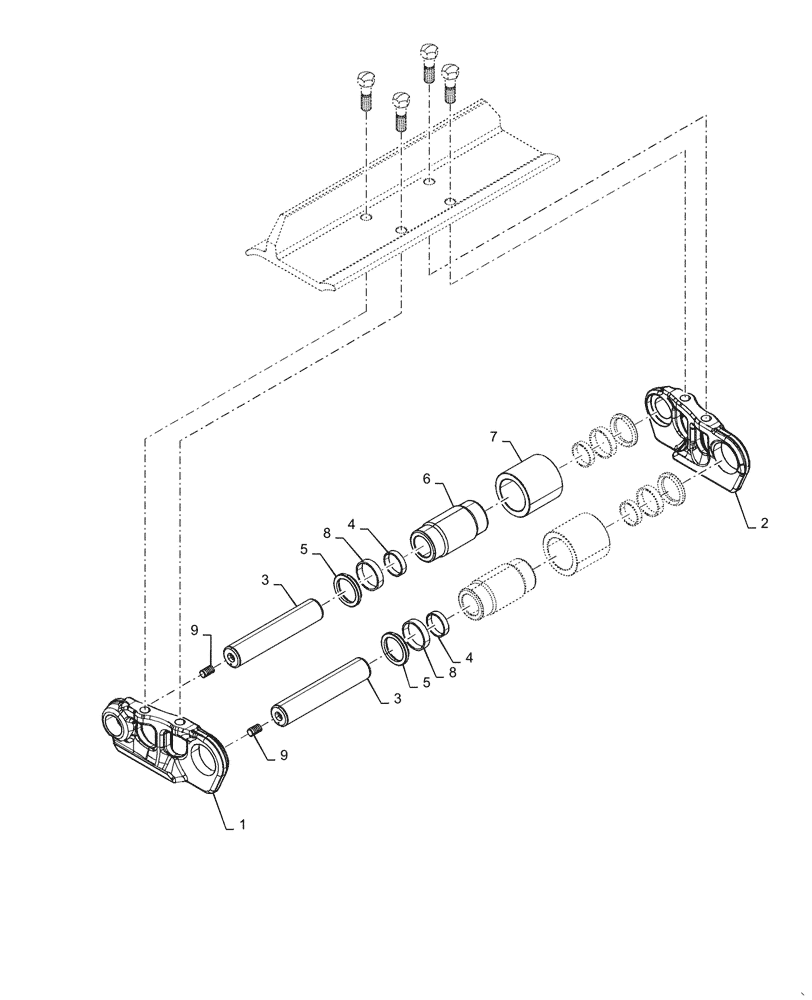

Запчасти Case 2050M LT (48.100.AD[17]) - CLT , TRACK LINK, COMPONENTS (48) - TRACKS & TRACK SUSPENSION

1

84314577

TRACK LINK

LH, Track Link

1шт.

2

84314573

TRACK LINK

RH, Track Link

1шт.

3

84314570

PIN,44.49mm OD x 230mm L

Pin, Track Link

2шт.

4

84314571

RING,45mm ID x 50mm OD x 10mm L

Thrust

4шт.

5

84359830

SEAL,51mm ID x 63mm OD x 9mm L

Sealing Ring Collar, Track Chain Link

4шт.

6

84314568

BUSHING,44.85mm ID x 72.7mm OD x 146.95mm L

Bushing, Track Chain, CLT

2шт.

7

84329171

BUSHING,44.85mm ID x 66.64mm OD x 146.95mm L

Bushing, Rotating

2шт.

8

84359832

SEAL,60mm ID x 67mm OD x 10mm L

Track Link

2шт.

9

87582718

PLUG

Oil, Track Chain

2шт.
