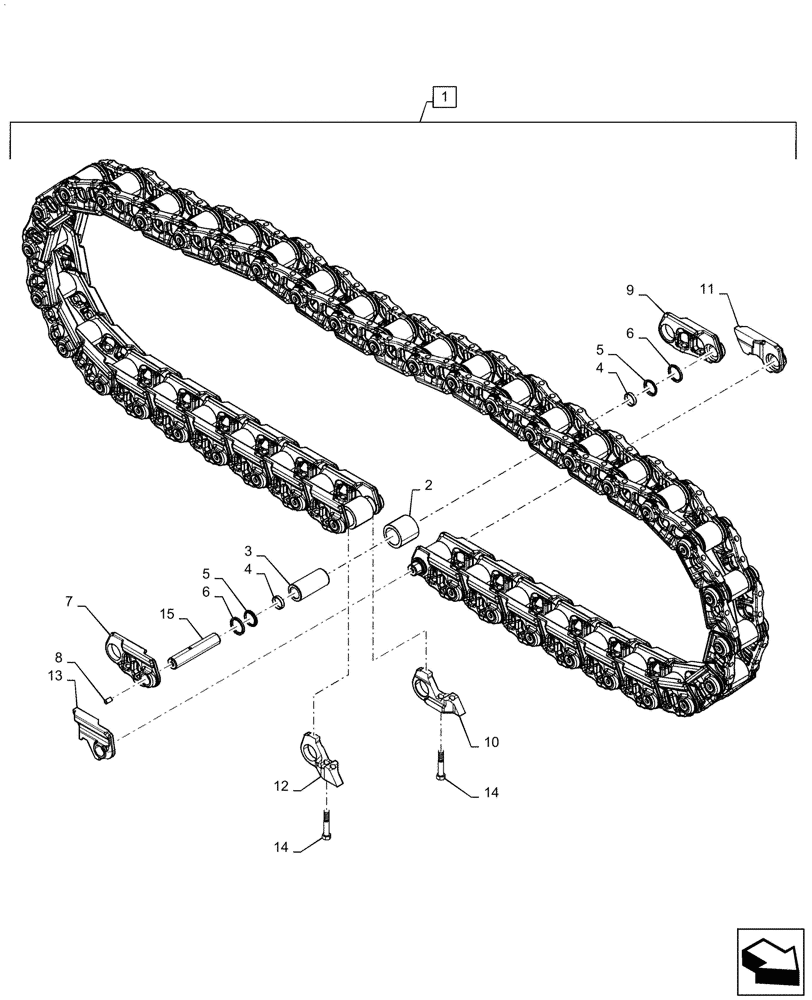

Запчасти Case 2050M LT (48.100.AD[12]) - TRACK CHAIN 40 LINK CELT (48) - TRACKS & TRACK SUSPENSION

1

84318869

TRACK CHAIN,7909.2mm L

40 Link, CELT, Incl 2 - 15

1шт.

2

84329171

BUSHING,44.85mm ID x 66.64mm OD x 146.95mm L

Track Chain, Advanced

40шт.

3

84329174

BUSHING,67mm ID x 93mm OD x 90mm L

ELT Rotating

40шт.

4

84314571

RING,45mm ID x 50mm OD x 10mm L

Thrust Track Chain

80шт.

5

84359830

SEAL,51mm ID x 63mm OD x 9mm L

Track Chain

80шт.

6

84359832

SEAL,60mm ID x 67mm OD x 10mm L

Track Chain Rubber

80шт.

7

84314577

TRACK LINK

Left Hand Link

39шт.

8

87582718

PLUG

Oil

40шт.

9

84314573

TRACK LINK

Right Hand Link

39шт.

10

84377122

TRACK LINK

Right Hand Split Bushing End

1шт.

11

84377130

TRACK LINK

Right Hand Split Pin End

1шт.

12

84314574

TRACK LINK

Left Hand Split Bushing End

1шт.

13

84314575

TRACK LINK

Left Hand Split Pin End

1шт.

14

84377489

BOLT

Master Link

4шт.

15

84314570

PIN,44.49mm OD x 230mm L

Track Chain STD

40шт.
