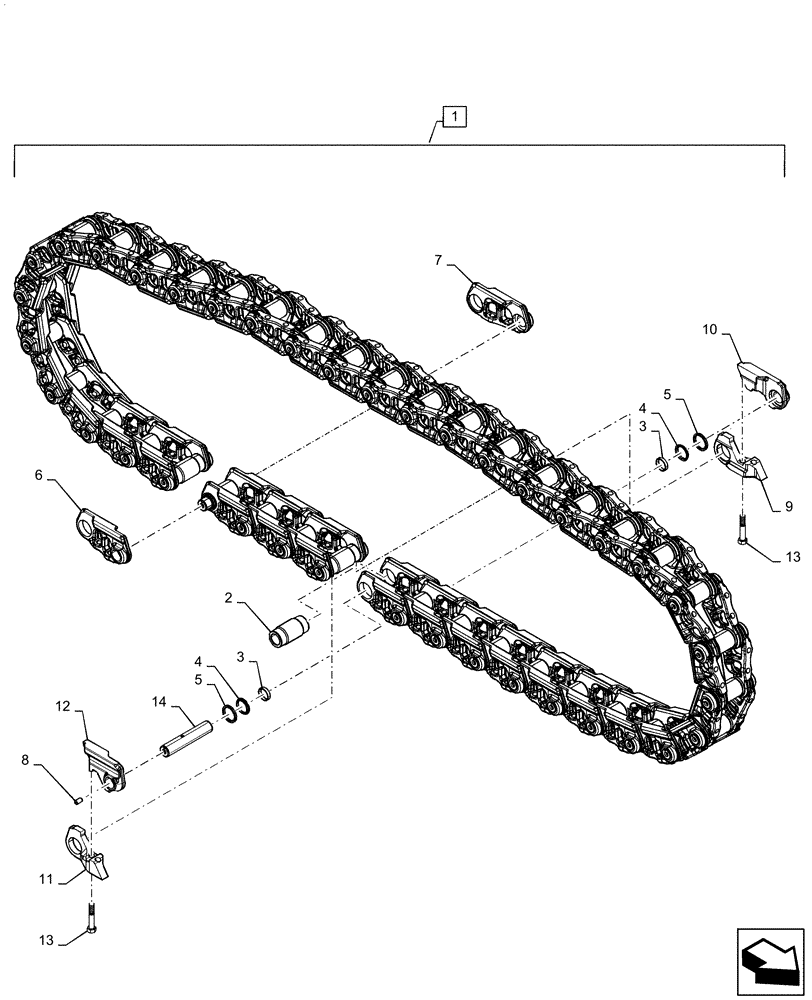

Запчасти Case 2050M LT (48.100.AD[11]) - TRACK CHAIN 40 LINK CLT (48) - TRACKS & TRACK SUSPENSION

1

NSS

NOT SOLD SEPARAT

Serviced By Component Only

1шт.

2

84314568

BUSHING,44.85mm ID x 72.7mm OD x 146.95mm L

Track Chain STD

40шт.

3

84314571

RING,45mm ID x 50mm OD x 10mm L

Thrust Track Chain

80шт.

4

84359830

SEAL,51mm ID x 63mm OD x 9mm L

Track Chain

80шт.

5

84359832

SEAL,60mm ID x 67mm OD x 10mm L

Rubber Track Chain

80шт.

6

84314577

TRACK LINK

Left Hand

39шт.

7

84314573

TRACK LINK

Right Hand

39шт.

8

87582718

PLUG

Oil

40шт.

9

84377122

TRACK LINK

Right Hand Split Bushing End

1шт.

10

84377130

TRACK LINK

Right Hand Split Pin End

1шт.

11

84314574

TRACK LINK

Left Hand Split Bushing End

1шт.

12

84314575

TRACK LINK

Left Hand Split Pin End

1шт.

13

84377489

BOLT

Master Link

4шт.

14

84314570

PIN,44.49mm OD x 230mm L

Track Chain STD

40шт.
