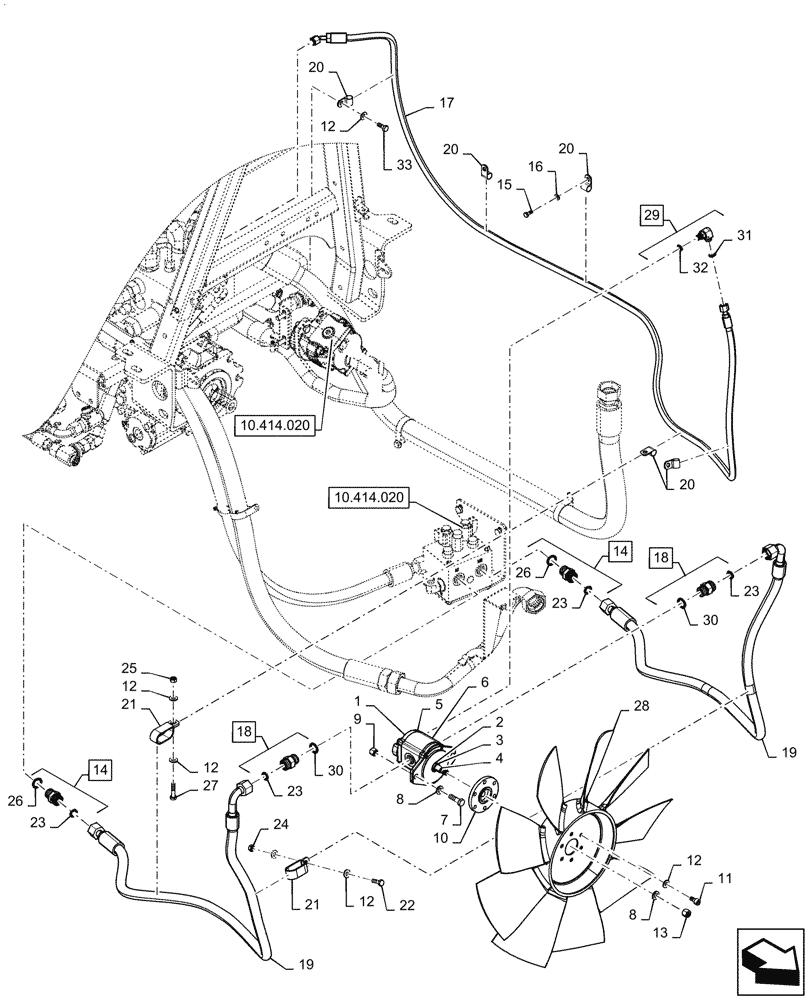

Запчасти Case 2050M LGP PAT (10.414.010) - FAN (10) - ENGINE

1

84398132

HYDRAULIC MOTOR,GEAR, 19 CC

Fan

1шт.

2

84489985

SEAL

Dust, Fan Motor

1шт.

3

84489986

RING

Retaining, Fan Motor

1шт.

4

84489987

SHAFT SEAL

Shaft, Fan Motor

1шт.

5

84489988

SEAL

Fan Motor

2шт.

6

84489989

O-RING

Fan Motor

2шт.

7

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

8

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

3шт.

9

87497916

NUT

2шт.

10

84474439

HUB

Fan

1шт.

11

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

6шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

13

232-2448

NUT,1/2"-20, GC

1шт.

14

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 23,26

2шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

17

47446951

HOSE,9.53mm ID x 2970mm L, SAE 100R1

1шт.

18

47743826

HYD CONNECTOR

Incl 23, 30

2шт.

19

84592532

HYDRAULIC HOSE,19.05mm ID x 1670mm L, SAE 100R16

2шт.

20

47621918

CLAMP,17.5mm, Coat, 11.9mm Bolt Hole, P Type

5шт.

21

242999A1

CLAMP

2шт.

22

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

23

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

24

86500689

NUT,M10 x 1.5, Cl 10

1шт.

25

87030549

NUT,M10 x 1.5, Cl 10

1шт.

26

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

27

84062222

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

1шт.

28

84385174

FAN,9 Blades, 700mm OD

1шт.

29

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Incl 31, 32

1шт.

30

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

33

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.
