Запчасти Case 2050M LGP PAT (10.202.010) - AIR INTAKE, AIR CLEANER (10) - ENGINE

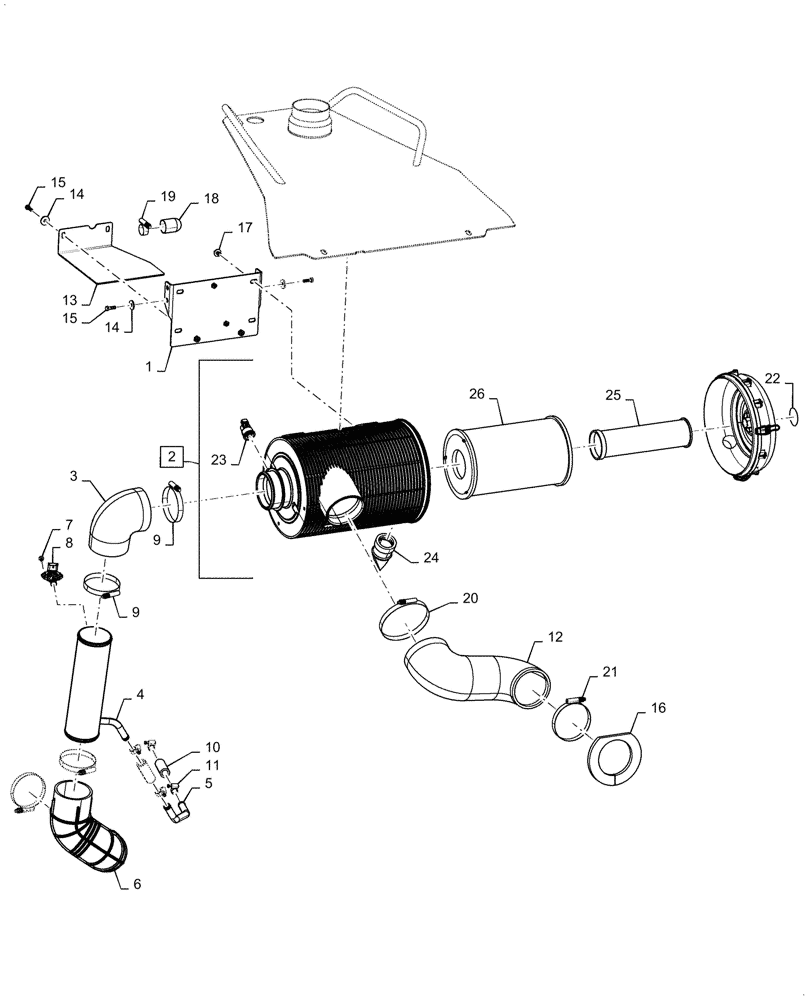

Схема запчастей Case 2050M LGP PAT - (10.202.010) - AIR INTAKE, AIR CLEANER (10) - ENGINE
23
15
22
20
8
16
17
13
18
15
2
26
9
21
4
3
7
9
1
6
5
24
12
19
10
14
14
25
11

Артикул

Название

Примечание

Количество

1

47841470

MOUNTING PLATE

Air Cleaner

1шт.

2

47841467

AIR CLEANER

Dusty Environment, Incl 23 - 26

1шт.

3

47855632

INTAKE AIR HOSE

Elbow Section, Cleaner to Turbo

1шт.

4

47841476

AIR INTAKE TUBE

Stright Section, Cleaner to Turbo

1шт.

5

47841860

TUBE

CCV

1шт.

6

47855630

AIR HOSE

1шт.

7

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

8

87482355

SENSOR

Humidity

1шт.

9

76086847

CLAMP,4.25" - 5.12", Worm Gear

4шт.

10

47517569

HOSE,19.05mm ID x 80mm L, SAE 30R2

2шт.

11

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

4шт.

12

47855634

DUCT

Air Intake

1шт.

13

47846400

HEAT SHIELD

Air Intake

1шт.

14

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

6шт.

15

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

16

47837507

SEAL

Foam

1шт.

17

86531147

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

4шт.

18

47792686

CAP

Scavenge

1шт.

19

76084436

HOSE CLAMP,1.25" - 2.12", Worm Gear

1шт.

20

47558655

HOSE CLAMP,5.25" - 6.12", Worm Gear

1шт.

21

47846551

HOSE CLAMP

Constant Torque

1шт.

22

47856966

DECAL

Air Cleaner

1шт.

23

84552308

SENSOR

Indicator Assy

1шт.

24

47850033

AIR CLEANER

Evacuator

1шт.

25

47850030

AIR FILTER

Secondary Element

1шт.

26

47850029

AIR FILTER

Primary Element

1шт.

Выбрано товаров: 26
