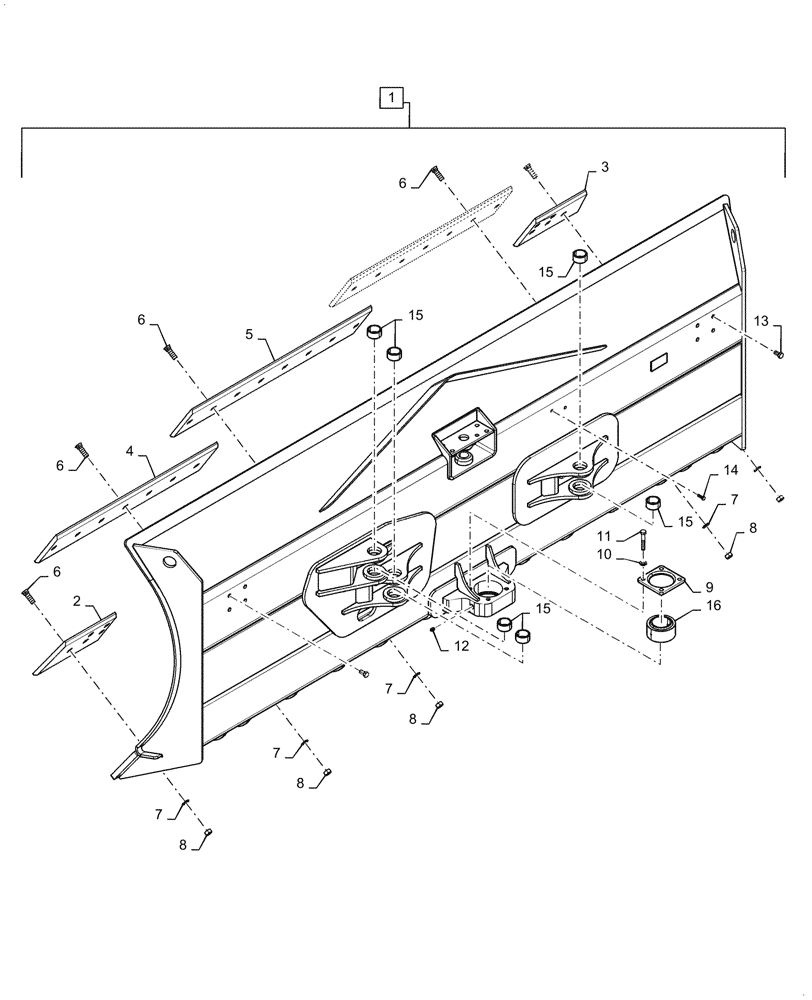

Запчасти Case 2050M LGP PAT (86.110.010) - VAR - 774188 - DOZER BLADE (86) - DOZER

1

47767815

DOZER BLADE,4000mm W x 1369mm H

LGP, CE Gray, Incl 2 - 16

1шт.

2

47632751

BIT

LH, End

1шт.

3

47632752

BIT

RH, End

1шт.

4

84338696

CUTTING EDGE

Outer

2шт.

5

47840430

CUTTING EDGE

Center

1шт.

6

8282270

PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9

32шт.

7

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

32шт.

8

12164321

NUT,M20 x 1.5, Cl 10

32шт.

9

84545666

CAP

Lower Trunnion

1шт.

10

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

4шт.

11

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

4шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

13

86508623

BOLT,Hex, M16 x 30mm, Cl 10.9

8шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

15

87314613

BUSHING

Lower Trunnion

1шт.

16

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

Cylinder Linking Blade Supports

6шт.
