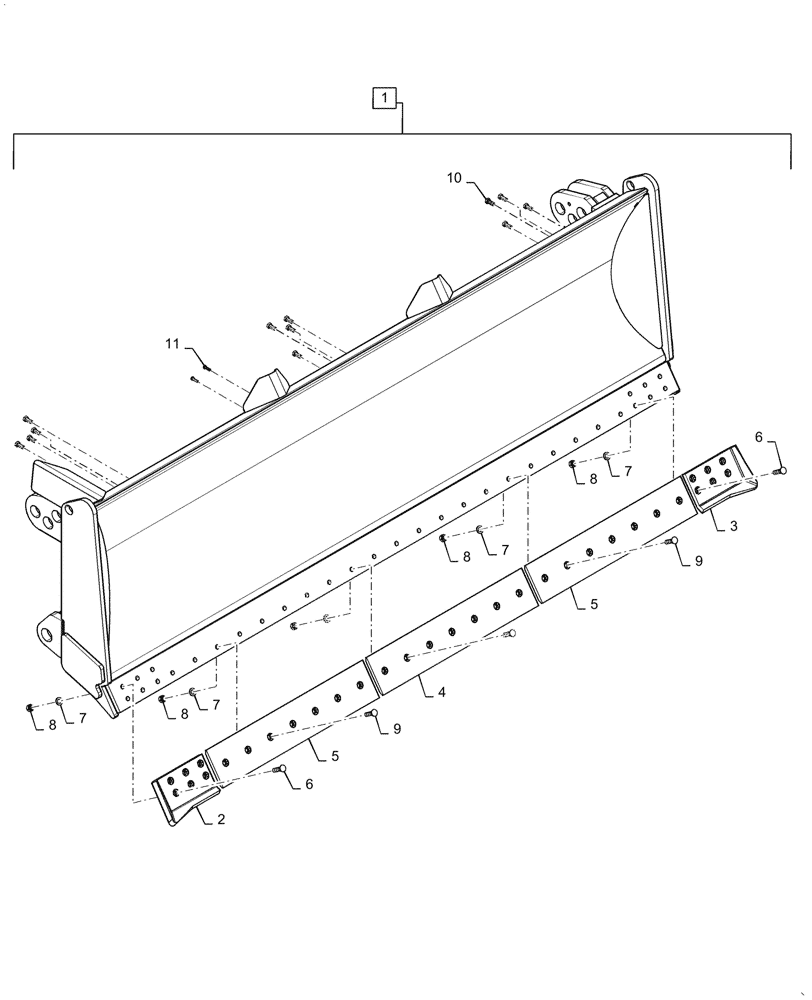

Запчасти Case 2050M LGP BD (86.110.010) - VAR - 784540 - BULL BLADE, STRAIGHT (86) - DOZER

1

47810560

DOZER BLADE,3900mm L x 1117mm H

Straight, Gray, Incl 2 - 11

1шт.

2

76090674

CUTTING EDGE

RH, Outer

1шт.

3

76090675

CUTTING EDGE

LH, Outer

1шт.

4

84475988

CUTTING EDGE,Bolt On, 7 Hole, 200mm W x 1062.8mm L

1шт.

5

84475993

CUTTING EDGE,Bolt On, 7 Hole, 200mm W x 1054.6mm L

2шт.

6

8273530

SCREW,Sq Hd, M20 x 1.5 x 72mm

12шт.

7

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

33шт.

8

12164321

NUT,M20 x 1.5, Cl 10

33шт.

9

8282270

PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9

21шт.

10

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

12шт.

11

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.
