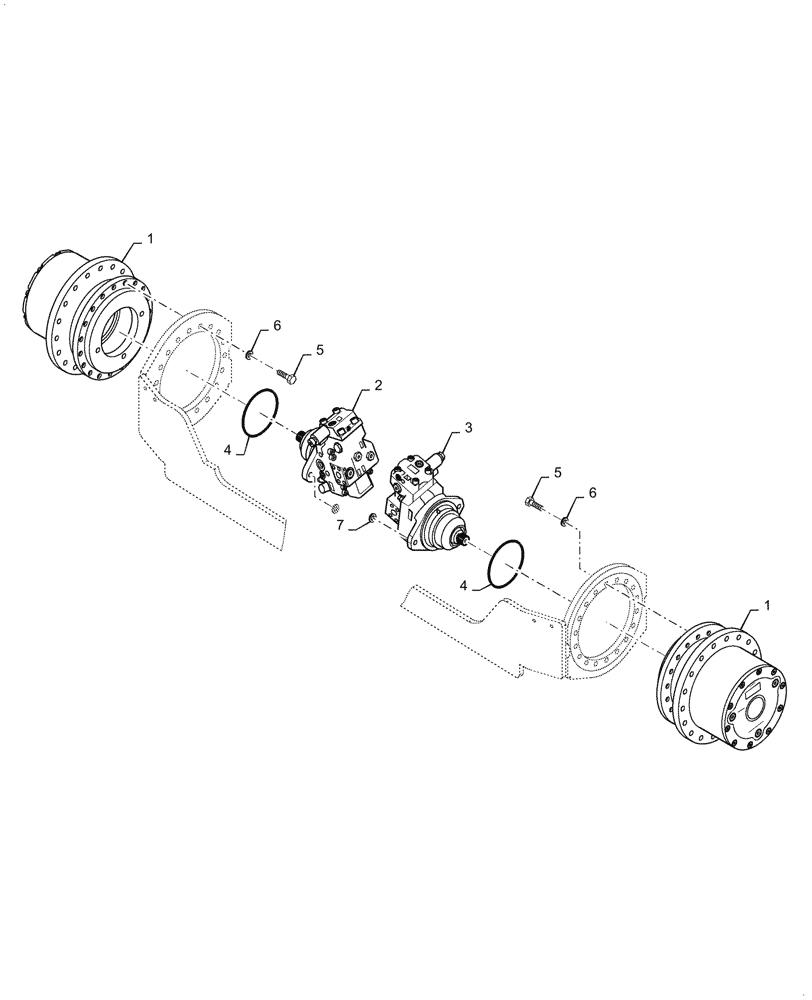

Запчасти Case SV212 (35.353.31[03]) - DRIVE ASSY, REAR WHEELS - NARROW VERSION (SM HD ATC, PF HD ATC) - ASN NBNTC3080 (35) - HYDRAULIC SYSTEMS

1

ND105941

REDUCER

Aux. Transmission, For Seal Kit See 7

2шт.

1

47847572

SEAL KIT

1шт.

2

84593579

HYDRAULIC MOTOR

Assy, Incl Coil & Valve

1шт.

2

47776607

VALVE

Solenoid

1шт.

2

47776124

COIL

Magnetic

1шт.

2

47776625

VALVE

Slide

1шт.

2

47776629

SEAL

Shaft

1шт.

3

84593581

HYDRAULIC MOTOR

Assy, Incl Coil & Valve

1шт.

3

47776607

VALVE

Solenoid

1шт.

3

47776124

COIL

Magnetic

1шт.

3

47776625

VALVE

Slide

1шт.

3

47776629

SEAL

Shaft

1шт.

4

84593584

O-RING

1шт.

5

ND021241

BOLT

40шт.

6

ND035944

WASHER

Spring

40шт.

7

ND035943

WASHER

4шт.
