(35.353.29[01]) - DRIVE ASSY, REAR WHEELS (SM SV, SM SV ACE) - BSN NBNTC2141

Запчасти Case SV212 (35.353.29[01]) - DRIVE ASSY, REAR WHEELS (SM SV, SM SV ACE) - BSN NBNTC2141 (35) - HYDRAULIC SYSTEMS

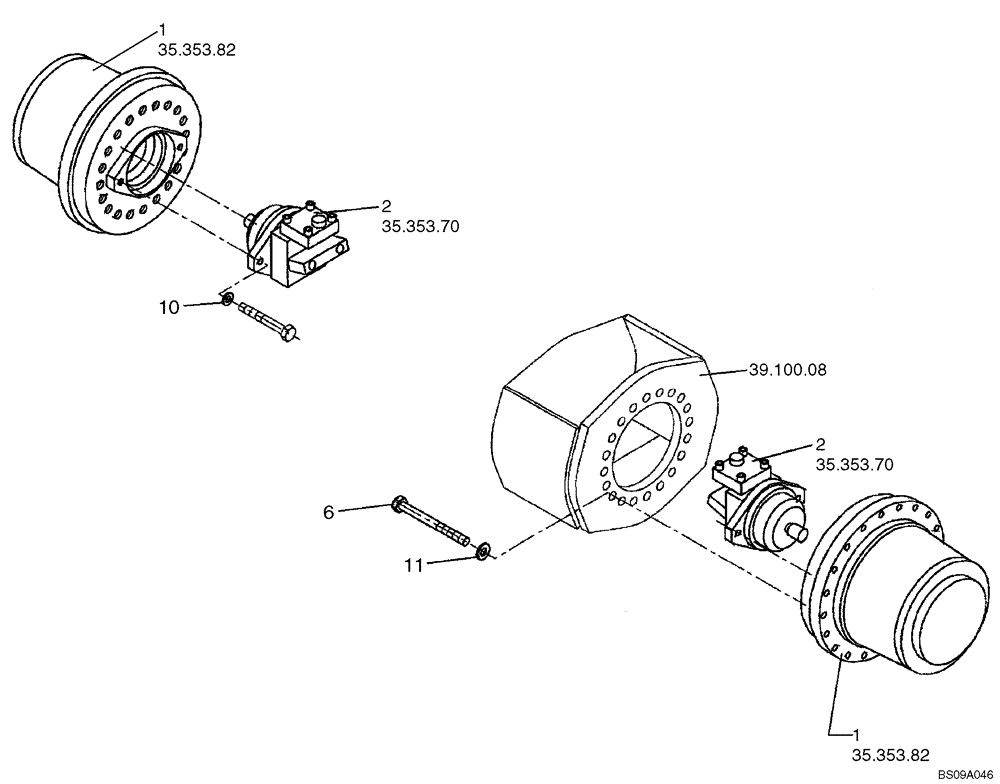

Схема запчастей Case SV212 - (35.353.29[01]) - DRIVE ASSY, REAR WHEELS (SM SV, SM SV ACE) - BSN NBNTC2141 (35) - HYDRAULIC SYSTEMS
2
35.353.82
35.353.82
35.353.70
39.100.08
35.353.70
1
6
11
1
10
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

DRIVE OF REAR WHEELS (ND103104) (GROUP 95)

1шт.

1

ND101767

REDUCER

2шт.

2

ND135693

HYDRAULIC MOTOR

Replaces ND090792 Motor, Hydraulic

2шт.

6

ND021241

BOLT

M20 x 65

40шт.

10

ND035943

WASHER

ID 16

4шт.

11

ND035944

WASHER

ID 20

40шт.
