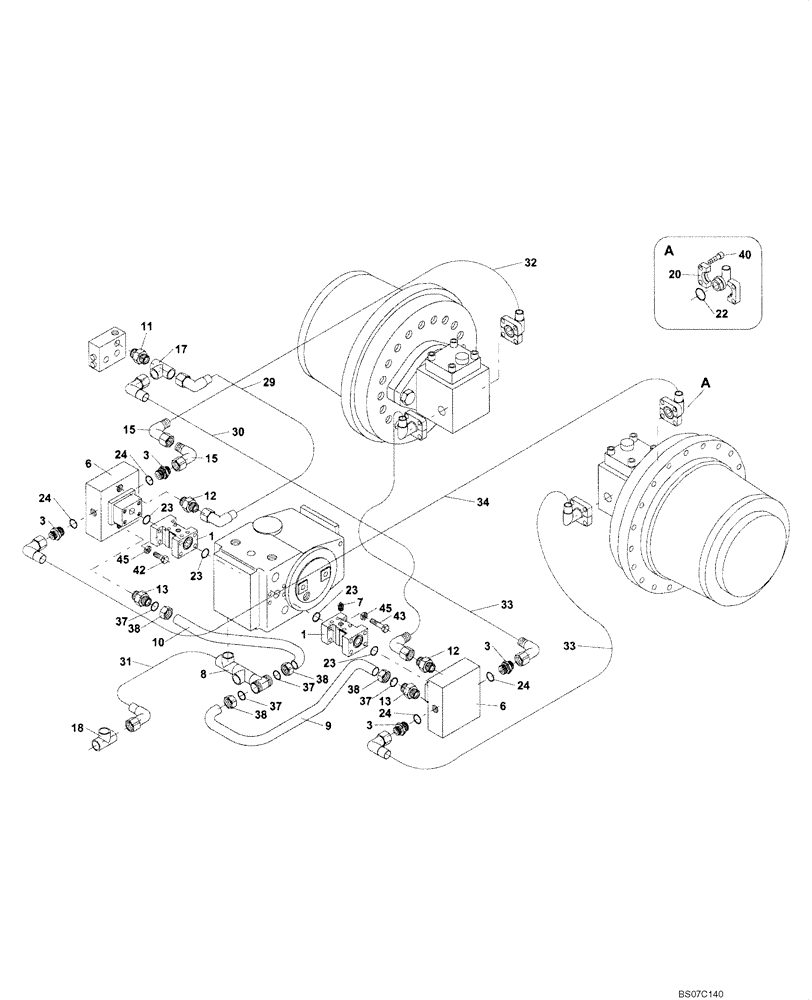

Запчасти Case SV212 (35.353.24) - CIRCUIT, HIGH TRACTION ANTI SLIP - REAR DRIVE ASSY - BSN DDD003017 (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

HIGH TRACTION ANTI-SLIP CIRCUIT (ND109720) (GROUP 319)

1шт.

1

ND109755

COUPLING BLOCK

2шт.

3

ND052874

HYD CONNECTOR

4шт.

6

ND090925

VALVE

2шт.

6

ND102434

SOLENOID VALVE

4шт.

7

ND109001

HYD CONNECTOR

2шт.

8

ND127247

PIPE

1шт.

9

ND120346

PIPE

1шт.

10

ND120347

PIPE

1шт.

11

ND062154

HYD CONNECTOR

1шт.

12

ND062156

HYD CONNECTOR

2шт.

13

ND062137

HYD CONNECTOR

2шт.

15

ND062300

ELBOW

2шт.

17

ND062403

TEE

1шт.

18

ND062426

HYD CONNECTOR

1шт.

20

ND062008

HALF-COLLAR

8шт.

22

ND079933

O-RING

4шт.

23

ND079934

O-RING

4шт.

24

ND079939

O-RING

4шт.

29

ND061510

HOSE,500.00 mm

1шт.

30

ND135014

HOSE

Replaces ND102240 Hose

1шт.

31

ND106983

HOSE

1шт.

32

ND103078

HOSE

1шт.

33

ND109002

HOSE

2шт.

34

ND103075

HOSE

1шт.

37

ND062039

SEAL

4шт.

38

ND062046

NUT

4шт.

40

ND034059

BOLT

16шт.

42

ND111454

BOLT

8шт.

43

ND111455

BOLT

8шт.

45

ND109085

NUT

16шт.
