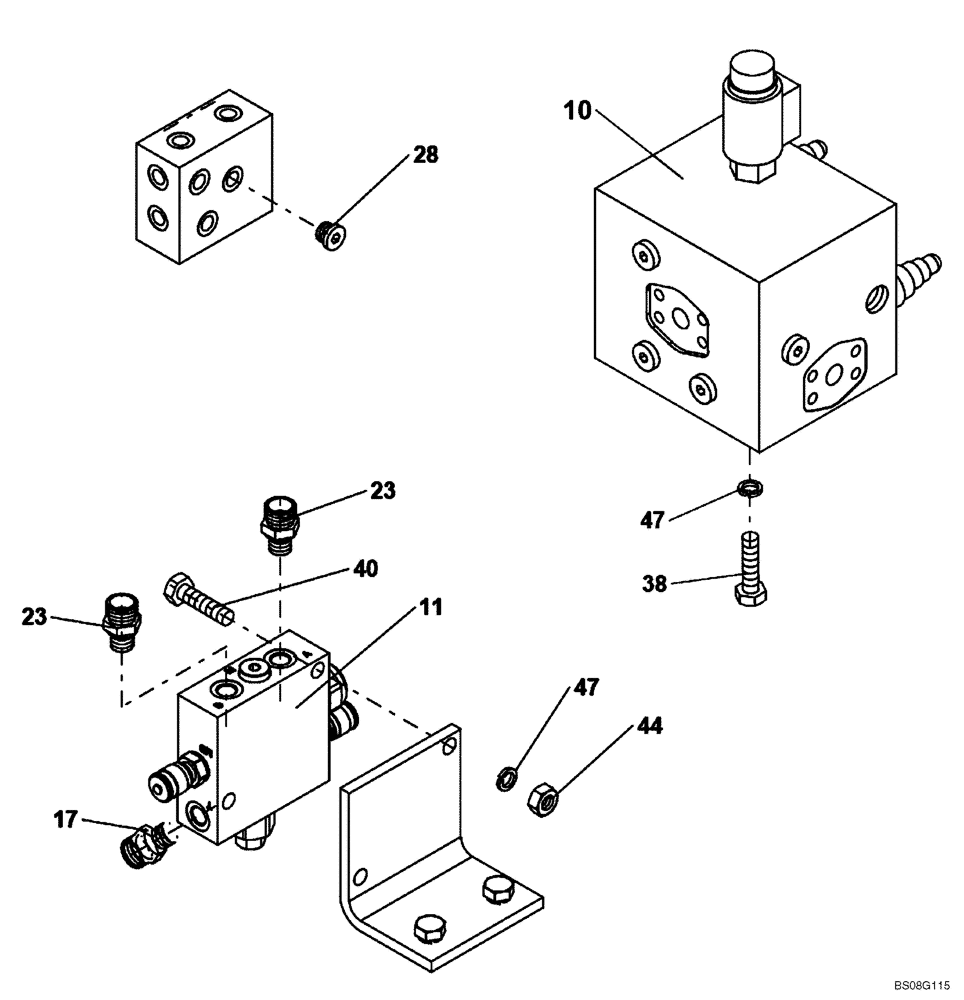

Запчасти Case SV212 (35.353.23) - VALVE INSTAL, VIBRATING (SM SV, PF SV) - ASN DDD003016 (35) - HYDRAULIC SYSTEMS

10

ND138581

VALVE

For Seal Kit See 48, Serial Range: -NDNTC3583

1шт.

10

47775116

VALVE

For Seal Kit See 48, Start Serial: NDNTC3584

1шт.

11

ND111159

VALVE

, Serial Range: -NDNTC3515

1шт.

11

47623764

VALVE

For Valves See 49 and 50, Start Serial: NDNTC3516

1шт.

17

ND062173

HYD CONNECTOR

, Serial Range: -NDNTC3515

1шт.

17

ND062145

HYD CONNECTOR

, Start Serial: NDNTC3516

1шт.

23

ND103410

HYD CONNECTOR

2шт.

28

ND062372

PLUG

1шт.

30

ND138187

PLUG

1шт.

38

ND021301

BOLT

3шт.

40

ND021200

BOLT

2шт.

44

ND021849

NUT

2шт.

47

ND035941

WASHER

5шт.

48

47629315

KIT

1шт.

49

47717687

VALVE

1шт.

50

47847407

VALVE

1шт.
