(35.353.22) - VALVE INSTAL, REAR DRIVE CIRCUIT, ANTI-SLIP (SM SV, PF SV) - BSN DDD03017

Запчасти Case SV212 (35.353.22) - VALVE INSTAL, REAR DRIVE CIRCUIT, ANTI-SLIP (SM SV, PF SV) - BSN DDD03017 (35) - HYDRAULIC SYSTEMS

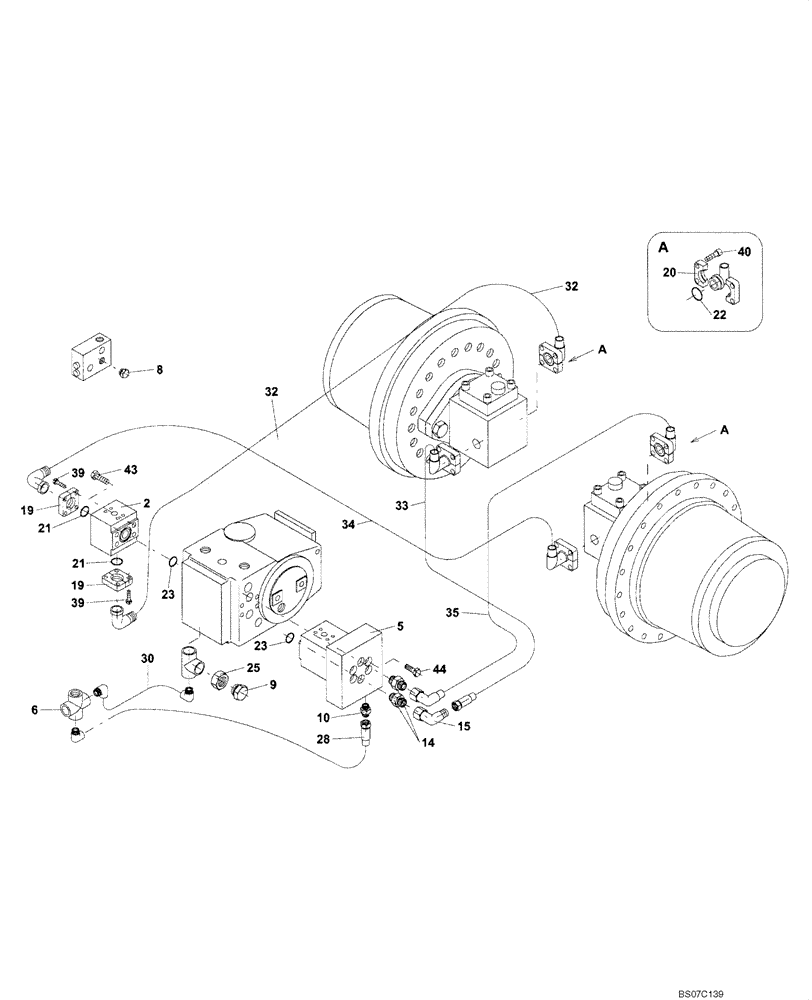

Схема запчастей Case SV212 - (35.353.22) - VALVE INSTAL, REAR DRIVE CIRCUIT, ANTI-SLIP (SM SV, PF SV) - BSN DDD03017 (35) - HYDRAULIC SYSTEMS
34
32
19
15
33
39
21
28
23
43
39
44
6
2
25
21
30
5
22
40
20
23
14
10
32
8
9
35
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

VALVE INSTAL, REAR DRIVE CIRCUIT (ND110014) (GROUP 317)

1шт.

2

ND031247

BLOCK

1шт.

5

ND142508

HYDRAULIC MANIFOLD

Replaces ND108898 Block

1шт.

6

ND127238

HYD CONNECTOR

1шт.

8

ND062372

PLUG

1шт.

9

ND108896

STOP PLUG

1шт.

10

ND062180

HYD CONNECTOR

1шт.

14

ND062217

HYD CONNECTOR

2шт.

15

ND062300

ELBOW

1шт.

19

ND062007

CLAMP

4шт.

20

ND062008

HALF-COLLAR

8шт.

21

ND079932

O-RING

2шт.

22

ND079933

O-RING

4шт.

23

ND079934

O-RING

2шт.

25

ND062057

NUT

1шт.

28

ND106984

HOSE

1шт.

30

ND108893

HOSE

1шт.

32

ND104855

HOSE

1шт.

33

ND103078

HOSE

1шт.

34

ND104856

HOSE

1шт.

35

ND103074

HOSE

1шт.

39

ND021295

BOLT

8шт.

40

ND034059

BOLT

16шт.

43

ND034062

BOLT

4шт.

44

ND034064

BOLT

4шт.
