Запчасти Case SV212 (35.353.21[02]) - HYDRAULIC SYSTEM OF TRAVEL, REAR WHEELS (ACE) - ASN DDD003016 (35) - HYDRAULIC SYSTEMS

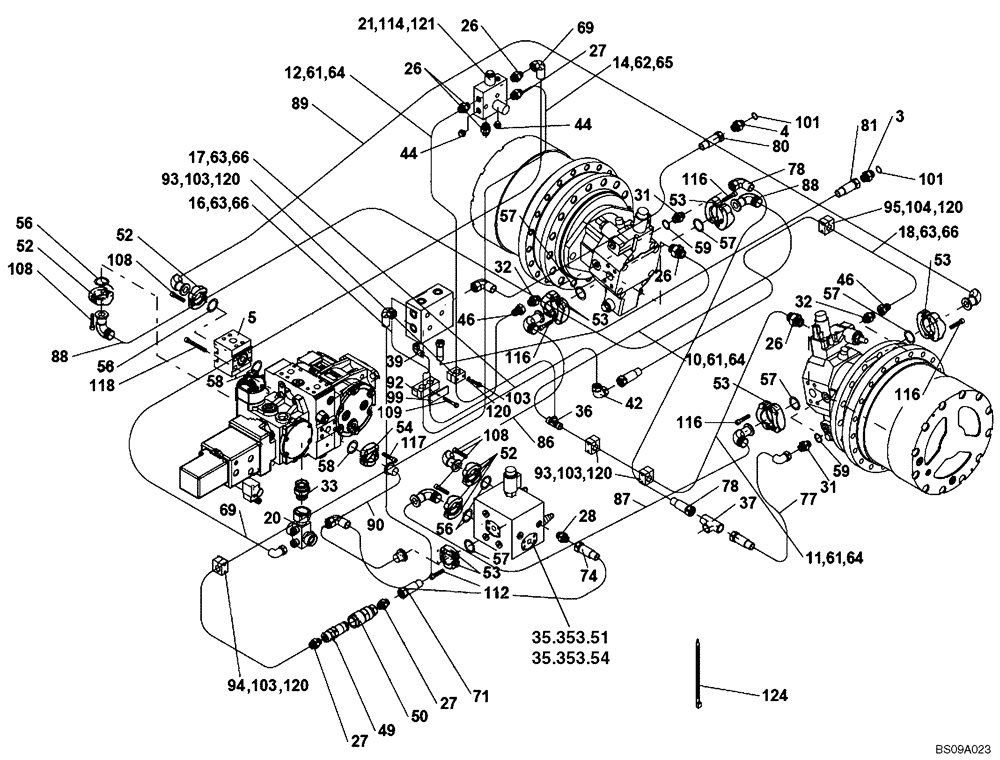

Схема запчастей Case SV212 - (35.353.21[02]) - HYDRAULIC SYSTEM OF TRAVEL, REAR WHEELS (ACE) - ASN DDD003016 (35) - HYDRAULIC SYSTEMS
116
88
101
77
32
62
12
66
42
95
4
108
58
63
112
46
94
21
3
59
49
35.353.51
35.353.54
27
63
101
56
64
64
52
120
99
31
52
69
61
120
108
17
93
57
109
32
39
69
104
46
33
56
81
20
88
53
10
27
66
26
57
90
36
26
53
61
92
57
14
114
120
103
53
57
93
118
65
37
71
5
52
57
11
103
63
16
120
52
58
27
31
121
50
53
89
56
44
78
53
74
86
103
108
26
103
120
44
64
28
116
87
116
54
124
18
78
61
66
80
26
59
116

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HYDRAULIC SYSTEM Of TRAVEL, REAR WHEELS (ND142122) (GROUP 306) (ACE)

1шт.

3

ND031345

HYD CONNECTOR

1шт.

4

ND138168

HYD CONNECTOR

1шт.

5

ND031247

BLOCK

1шт.

10

ND124180

HYD TUBE

1шт.

11

ND124182

HYD TUBE

1шт.

12

ND127572

HYD TUBE

1шт.

14

ND127573

HYD TUBE

1шт.

16

ND127574

PIPE

1шт.

17

ND127575

HYD TUBE

1шт.

18

ND103203

HYD TUBE

1шт.

20

ND139725

HYD CONNECTOR

1шт.

21

ND123634

VALVE BLOCK

Includes ND067924 Solenoid and ND115381 Brake Pressure Switch

1шт.

21

ND067924

SOLENOID

Not Illustrated

2шт.

21

84389510

PRESSURE SWITCH

PRESSURE SWITCH; Brake (Not Illustrated)

1шт.

26

ND062153

HYD CONNECTOR

5шт.

27

ND062173

HYD CONNECTOR

3шт.

28

ND137344

HYD CONNECTOR

1шт.

29

ND138443

HYD CONNECTOR

Not Illustrated

1шт.

31

ND139010

HYD CONNECTOR

2шт.

32

ND062135

HYD CONNECTOR

2шт.

33

ND062136

HYD CONNECTOR

1шт.

36

ND062294

TEE

1шт.

37

ND062335

TEE

1шт.

39

ND062367

HYD CONNECTOR

Elbow

1шт.

42

ND062247

HYD CONNECTOR

Coupling

1шт.

44

ND062452

PLUG

2шт.

46

ND062391

REDUCER

2шт.

49

ND112940

COUPLING, QUICK, FEM

1шт.

50

ND112941

QUICK MALE COUPLING

1шт.

52

ND062007

CLAMP

8шт.

53

ND062008

HALF-COLLAR

10шт.

54

ND062009

FLANGE

2шт.

56

ND079932

O-RING

4шт.

57

ND079933

O-RING

5шт.

58

ND079934

O-RING

2шт.

59

ND079939

O-RING

2шт.

61

ND062039

SEAL

6шт.

62

ND062033

SLEEVE

2шт.

63

ND062037

SEAL

6шт.

64

ND062046

NUT

6шт.

65

ND062047

NUT

2шт.

66

ND062058

NUT

6шт.

69

ND140231

HOSE

1шт.

71

ND127241

HOSE

1шт.

74

ND061847

HOSE

Not Illustrated

1шт.

77

ND133284

HOSE

1шт.

78

ND103077

HOSE

1шт.

80

ND137826

HOSE

1шт.

81

ND061509

FLEXIBLE HOSE

1шт.

86

ND139989

HOSE

1шт.

87

ND139990

HOSE

1шт.

88

ND104855

HOSE

1шт.

89

84420222

HYDRAULIC HOSE

, Serial Range: -NDNTC3549

1шт.

89

ND104856

HOSE

, Start Serial: NDNTC3550

1шт.

90

ND139986

HOSE

1шт.

92

ND064802

SLEEVE

1шт.

93

ND064797

SLEEVE

3шт.

94

ND064786

CLAMP

1шт.

95

ND064799

CLAMP

1шт.

99

ND064807

CLAMP

1шт.

101

ND073366

WASHER

2шт.

103

ND024231

BOLT

5шт.

104

ND024233

BOLT

4шт.

108

ND021296

BOLT

16шт.

109

ND021184

BOLT

1шт.

112

ND021195

BOLT

4шт.

114

ND024264

BOLT

2шт.

116

ND034059

BOLT

16шт.

117

ND034063

BOLT

4шт.

118

ND034062

BOLT

4шт.

120

ND029248

WASHER

9шт.

121

ND035941

WASHER

2шт.

124

ND106910

STRAP

15шт.

Выбрано товаров: 74
