Запчасти Case SV212 (35.353.21[01]) - HYDRAULIC SYSTEM OF TRAVEL, REAR WHEELS (ACE) - BSN DDD003017 (35) - HYDRAULIC SYSTEMS

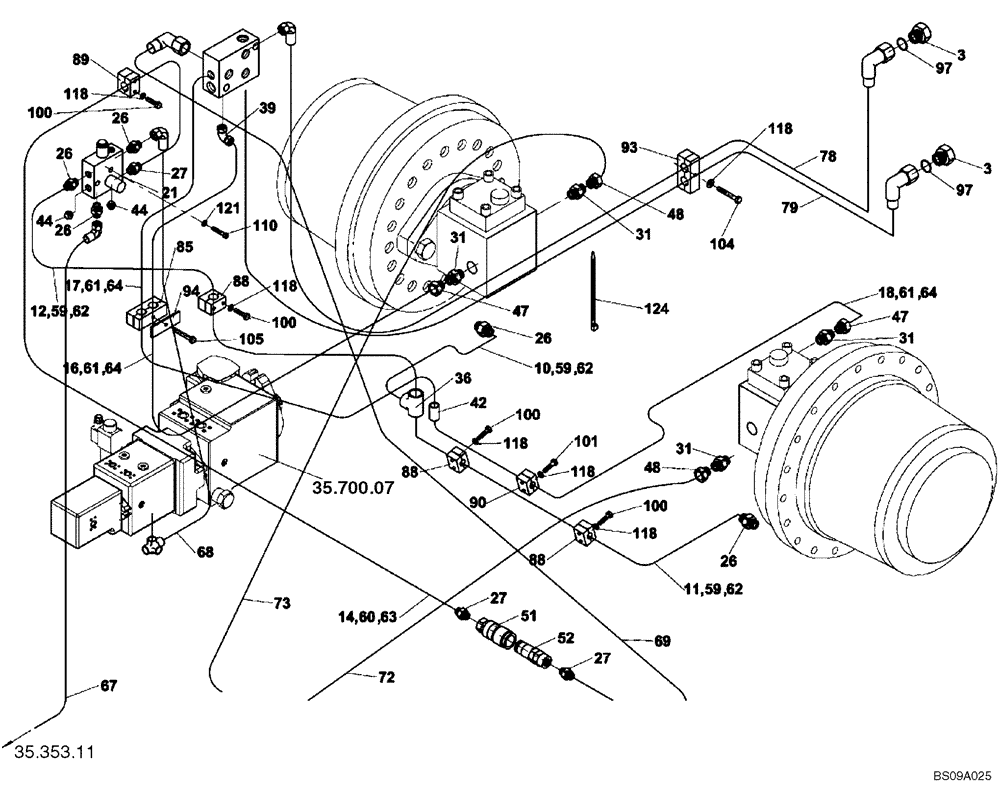

Схема запчастей Case SV212 - (35.353.21[01]) - HYDRAULIC SYSTEM OF TRAVEL, REAR WHEELS (ACE) - BSN DDD003017 (35) - HYDRAULIC SYSTEMS
78
26
42
62
59
31
61
100
44
118
3
90
88
31
100
63
61
10
16
17
72
118
69
52
44
104
118
48
26
97
35.353.11
26
110
26
62
47
39
64
14
68
48
27
118
47
100
59
27
3
31
64
100
121
26
59
105
118
93
31
36
118
73
97
88
51
64
101
18
67
85
12
94
11
21
124
62
89
60
27
88
35.700.07
79
61

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HYDRAULIC SYSTEM OF TRAVEL, REAR WHEELS (ND137743) (GROUP 306) (ACE)

1шт.

3

ND031345

HYD CONNECTOR

2шт.

10

ND124180

HYD TUBE

1шт.

11

ND124182

HYD TUBE

1шт.

12

ND127572

HYD TUBE

1шт.

14

ND127573

HYD TUBE

1шт.

16

ND127574

PIPE

1шт.

17

ND127575

HYD TUBE

1шт.

18

ND103203

HYD TUBE

1шт.

21

ND123634

VALVE BLOCK

Includes ND067924 Solenoid and ND115381 Brake Pressure Switch

1шт.

21

ND067924

SOLENOID

Not Illustrated

2шт.

21

84389510

PRESSURE SWITCH

PRESSURE SWITCH; Brake (Not Illustrated)

1шт.

26

ND062153

HYD CONNECTOR

5шт.

27

ND062173

HYD CONNECTOR

3шт.

31

ND062135

HYD CONNECTOR

4шт.

36

ND062294

TEE

1шт.

39

ND062367

HYD CONNECTOR

1шт.

42

ND062247

HYD CONNECTOR

1шт.

44

ND062452

PLUG

2шт.

47

ND062391

REDUCER

2шт.

48

ND062433

RESTRICTOR

2шт.

51

ND112940

COUPLING, QUICK, FEM

1шт.

52

ND112941

QUICK MALE COUPLING

1шт.

59

ND062039

SEAL

6шт.

60

ND062033

SLEEVE

2шт.

61

ND062037

SEAL

6шт.

62

ND062046

NUT

6шт.

63

ND062047

NUT

2шт.

64

ND062058

NUT

6шт.

67

ND136967

HOSE

1шт.

68

ND127244

HOSE

1шт.

69

ND127241

HOSE

1шт.

72

ND133284

HOSE

1шт.

73

ND103077

HOSE

1шт.

78

ND137826

HOSE

Replaces ND133286 Hose Used On Some Models

1шт.

79

ND061509

FLEXIBLE HOSE

1шт.

85

ND064802

SLEEVE

1шт.

88

ND064797

SLEEVE

3шт.

89

ND064786

CLAMP

1шт.

90

ND064799

CLAMP

1шт.

93

ND064801

SLEEVE

1шт.

94

ND064807

CLAMP

1шт.

97

ND073366

WASHER

2шт.

100

ND024231

BOLT

8шт.

101

ND024233

BOLT

2шт.

104

ND024238

BOLT

2шт.

105

ND021184

BOLT

1шт.

110

ND024264

BOLT

2шт.

118

ND029248

WASHER

12шт.

121

ND035941

WASHER

2шт.

124

ND106910

STRAP

15шт.

Выбрано товаров: 51
