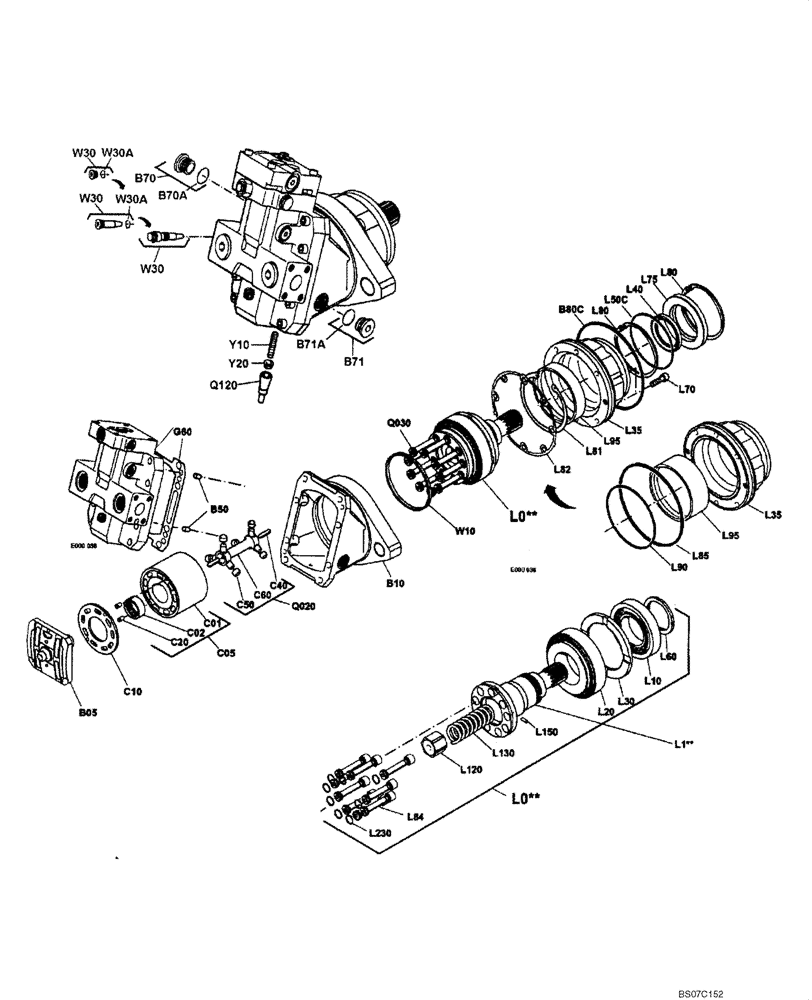

Запчасти Case SV212 (35.353.15) - MOTOR, HYDRAULIC DRUM TRAVEL (35) - HYDRAULIC SYSTEMS

ND090942

HYDRAULIC MOTOR

MOTOR, HYDRAULIC DRUM TRAVEL

1шт.

a0

ND102436

SEAL KIT

1шт.

b05

ND102409

COVER

1шт.

b10

ND102371

BOX

1шт.

b50

ND102301

PIN

2шт.

b70

ND102493

PLUG

Incl O-ring

1шт.

b71

ND102493

PLUG

Incl O-ring

1шт.

c05

ND102543

CYLINDER BLOCK

1шт.

c10

ND102472

PLATE

1шт.

g60

ND102376

GASKET

1шт.

g80

ND102317

PLUG

2шт.

l35

ND102372

BEARING HOUSING

1шт.

l40

ND102500

SEAL

1шт.

l70

ND102527

BOLT

8шт.

l75

ND102544

SEAL

1шт.

l80

ND102362

SNAP RING

2шт.

l81

ND102375

SNAP RING

1шт.

l82

ND102370

GASKET

1шт.

l84

ND102442

PISTON

9шт.

l95

ND102373

SPACER

1шт.

w10

ND102541

RING

1шт.

w30

ND102459

SENSOR

Speed Indicator

1шт.

y10

ND102551

ADJUSTMENT SCREW

1шт.

y20

ND102306

LOCK NUT

1шт.

b80c

ND102540

O-RING

1шт.

l1d1

ND102455

SHAFT

1шт.

l50c

ND102382

O-RING

1шт.

q020

ND102565

SHAFT

1шт.

q030

ND102564

PISTON RING

1шт.

q120

ND102561

SEAL

Sign

1шт.
