(35.353.07[02]) - LINES, FRONT DRUM DRIVE (ACE) (SM SV ANTI-SLIP, SM SV HT ANTI-SLIP) - ASN DDD003016

Запчасти Case SV212 (35.353.07[02]) - LINES, FRONT DRUM DRIVE (ACE) (SM SV ANTI-SLIP, SM SV HT ANTI-SLIP) - ASN DDD003016 (35) - HYDRAULIC SYSTEMS

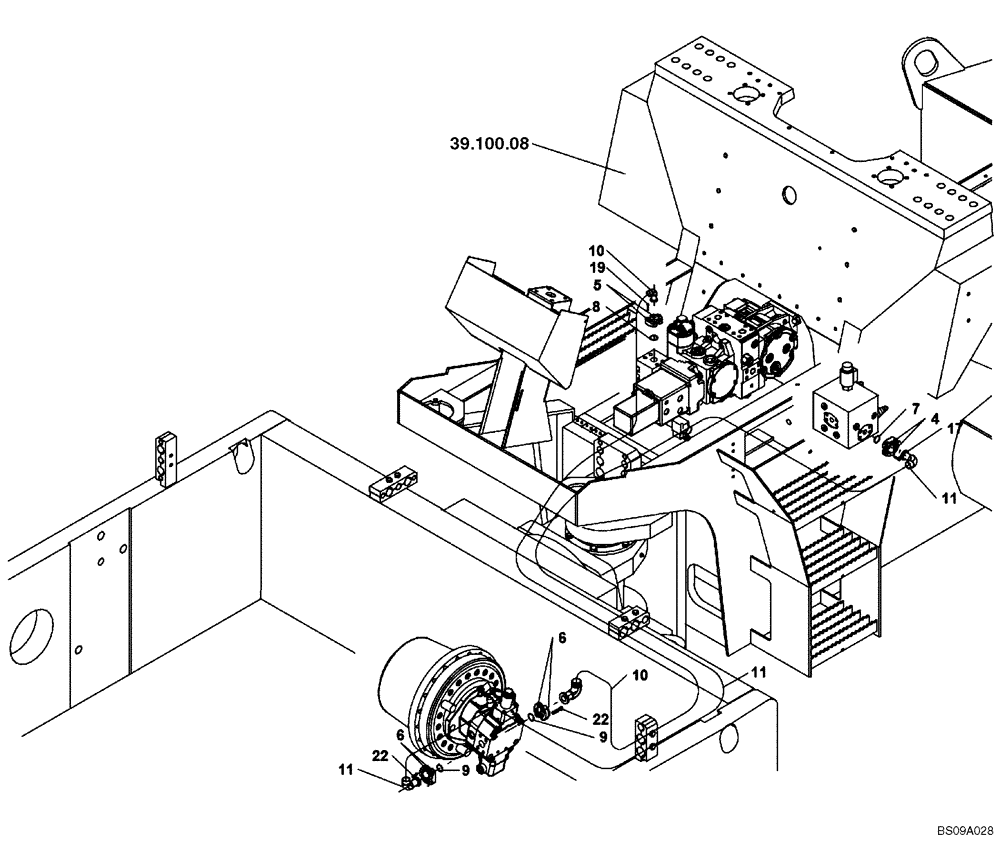

Схема запчастей Case SV212 - (35.353.07[02]) - LINES, FRONT DRUM DRIVE (ACE) (SM SV ANTI-SLIP, SM SV HT ANTI-SLIP) - ASN DDD003016 (35) - HYDRAULIC SYSTEMS
6
19
11
5
11
7
22
22
17
39.100.08
9
10
6
19
11
9
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LINES, FRONT DRUM DRIVE (ND142121) (GROUP 312) (ACE)

1шт.

4

ND062007

CLAMP

Half Flange

2шт.

5

ND062008

HALF-COLLAR

Half Flange

2шт.

6

ND062009

FLANGE

Half Clamp

4шт.

7

ND079932

O-RING

1шт.

8

ND079933

O-RING

1шт.

9

ND079934

O-RING

2шт.

10

ND139987

HYDRAULIC HOSE

1шт.

11

ND139988

HYDRAULIC HOSE

1шт.

17

ND021183

BOLT

4шт.

19

ND021303

BOLT

4шт.

22

ND034063

BOLT

8шт.
