(35.353.06[02]) - LINES, FRONT DRUM DRIVE (ACE) (SM SV) - ASN DDD003016

Запчасти Case SV212 (35.353.06[02]) - LINES, FRONT DRUM DRIVE (ACE) (SM SV) - ASN DDD003016 (35) - HYDRAULIC SYSTEMS

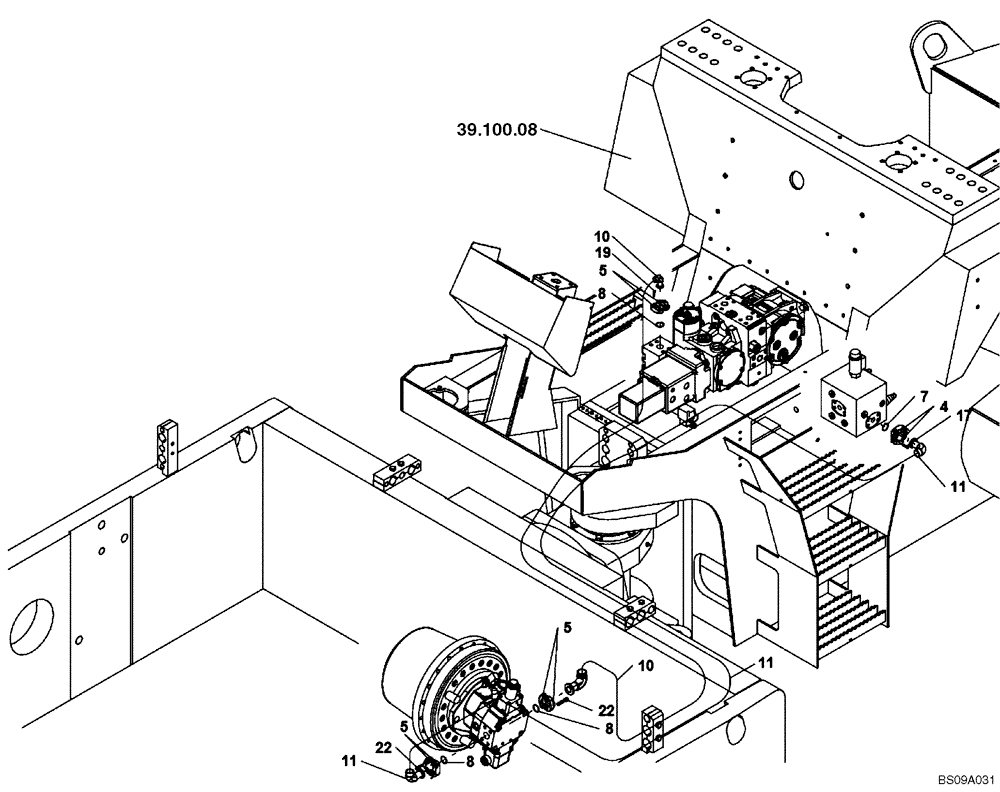

Схема запчастей Case SV212 - (35.353.06[02]) - LINES, FRONT DRUM DRIVE (ACE) (SM SV) - ASN DDD003016 (35) - HYDRAULIC SYSTEMS
8
10
22
5
17
7
11
8
19
10
22
39.100.08
8
4
5
5
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LINES, FRONT DRUM DRIVE (ND142119) (GROUP 310) (ACE)

1шт.

4

ND062007

CLAMP

Half Flange

2шт.

5

ND062008

HALF-COLLAR

Half Flange

6шт.

7

ND079932

O-RING

1шт.

8

ND079933

O-RING

3шт.

10

ND139996

HYDRAULIC HOSE

1шт.

11

ND139993

HYDRAULIC HOSE

1шт.

17

ND021183

BOLT

4шт.

19

ND021303

BOLT

4шт.

22

ND034059

BOLT

8шт.
