(35.353.06[01]) - LINES, FRONT DRUM DRIVE (ACE) (SM SV) - BSN DDD003017

Запчасти Case SV212 (35.353.06[01]) - LINES, FRONT DRUM DRIVE (ACE) (SM SV) - BSN DDD003017 (35) - HYDRAULIC SYSTEMS

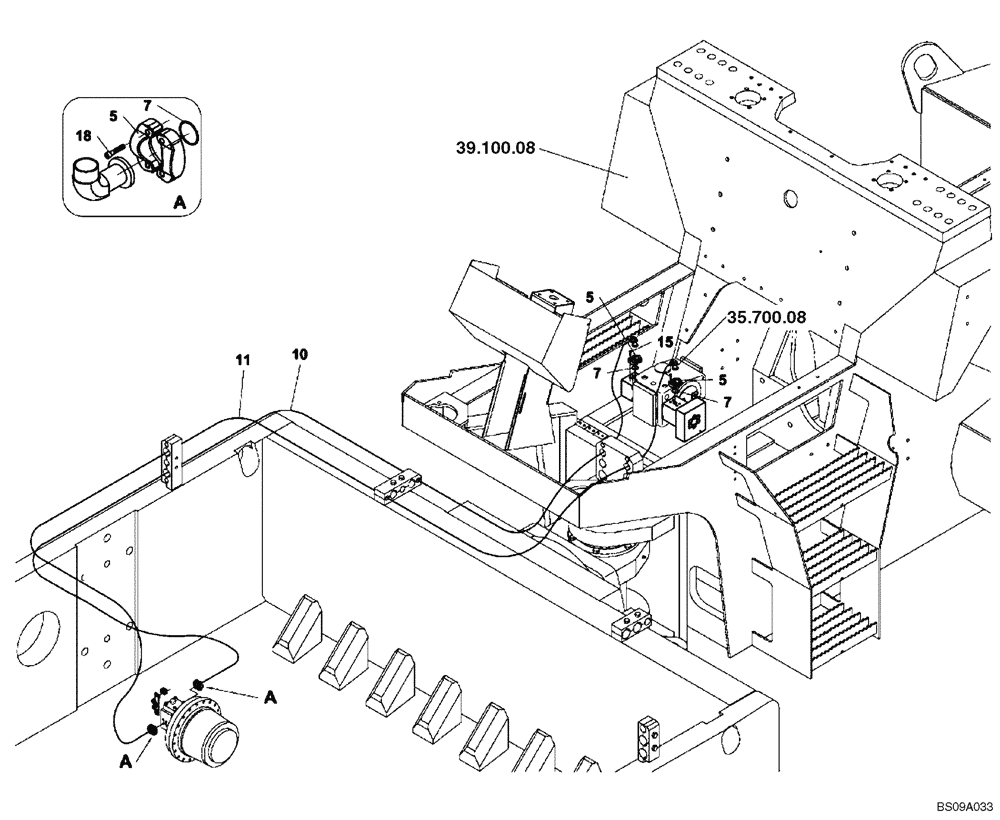

Схема запчастей Case SV212 - (35.353.06[01]) - LINES, FRONT DRUM DRIVE (ACE) (SM SV) - BSN DDD003017 (35) - HYDRAULIC SYSTEMS
39.100.08
7
18
15
5
11
10
7
5
7
5
35.700.08
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LINES, FRONT DRUM DRIVE (ND137744) (GROUP 310) (ACE)

1шт.

5

ND062008

HALF-COLLAR

8шт.

7

ND079933

O-RING

4шт.

10

ND136964

HOSE

1шт.

11

ND136963

HOSE

1шт.

15

ND024260

BOLT

8шт.

18

ND034059

BOLT

8шт.

Выбрано товаров: 7
