(35.353.04) - LINES, FRONT DRUM DRIVE (ACE) (SM SV ANTI-SLIP) - BSN DDD003017

Запчасти Case SV212 (35.353.04) - LINES, FRONT DRUM DRIVE (ACE) (SM SV ANTI-SLIP) - BSN DDD003017 (35) - HYDRAULIC SYSTEMS

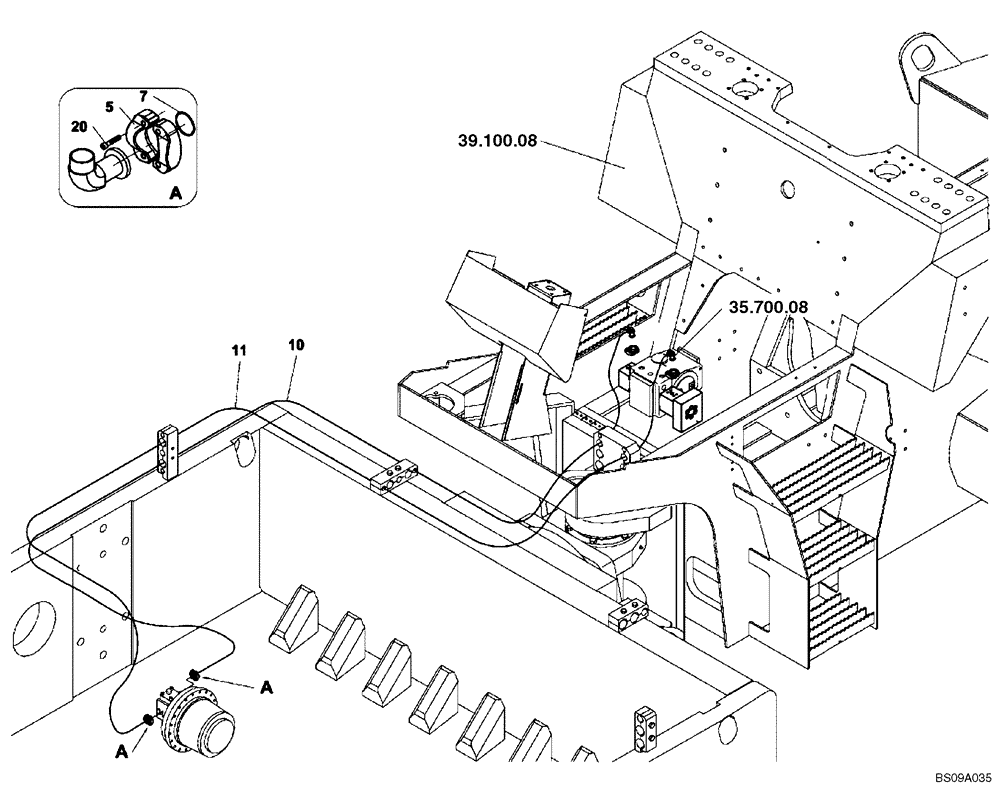

Схема запчастей Case SV212 - (35.353.04) - LINES, FRONT DRUM DRIVE (ACE) (SM SV ANTI-SLIP) - BSN DDD003017 (35) - HYDRAULIC SYSTEMS
35.700.08
39.100.08
20
5
10
11
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LINES, FRONT DRUM DRIVE (ND137745) (GROUP 311) (ACE)

1шт.

5

ND062008

HALF-COLLAR

4шт.

7

ND079933

O-RING

2шт.

10

ND136965

HOSE

1шт.

11

ND136966

HOSE

1шт.

20

ND034059

BOLT

8шт.
