(35.353.02[01]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM (ACE) - BSN DDD003017

Запчасти Case SV212 (35.353.02[01]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM (ACE) - BSN DDD003017 (35) - HYDRAULIC SYSTEMS

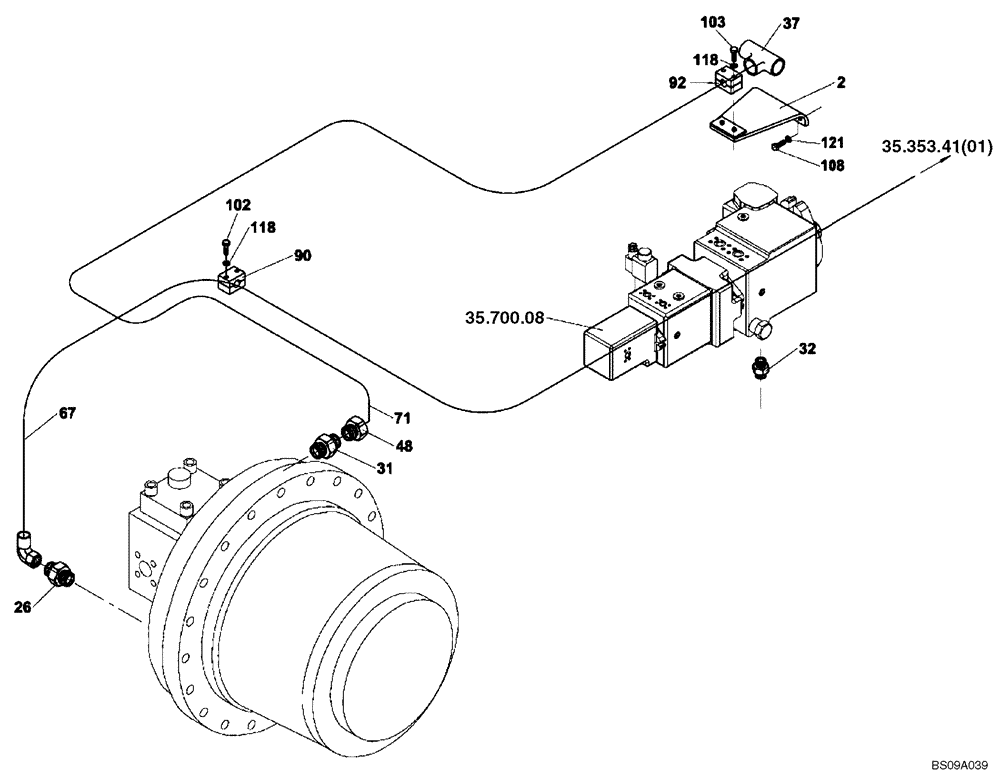

Схема запчастей Case SV212 - (35.353.02[01]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM (ACE) - BSN DDD003017 (35) - HYDRAULIC SYSTEMS
2
118
71
35.353.41(01)
108
118
32
26
102
37
35.700.08
121
92
67
31
103
90
48
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HYDRAULIC SYSTEM OF TRAVEL, DRUM (ND137743) (GROUP 306) (ACE)

1шт.

2

ND103340

SUPPORT

1шт.

26

ND062153

HYD CONNECTOR

1шт.

31

ND062135

HYD CONNECTOR

1шт.

32

ND062136

HYD CONNECTOR

1шт.

37

ND062335

TEE

1шт.

48

ND062433

RESTRICTOR

1шт.

67

ND136967

HOSE

1шт.

71

ND136968

HOSE

1шт.

90

ND064799

CLAMP

1шт.

92

ND064809

CLAMP

1шт.

102

ND024235

BOLT

2шт.

103

ND024234

BOLT

2шт.

108

ND021197

BOLT

2шт.

118

ND029248

WASHER

16шт.

121

ND035941

WASHER

4шт.
