(35.353.01[02]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM - ASN DDD003016

Запчасти Case SV212 (35.353.01[02]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM - ASN DDD003016 (35) - HYDRAULIC SYSTEMS

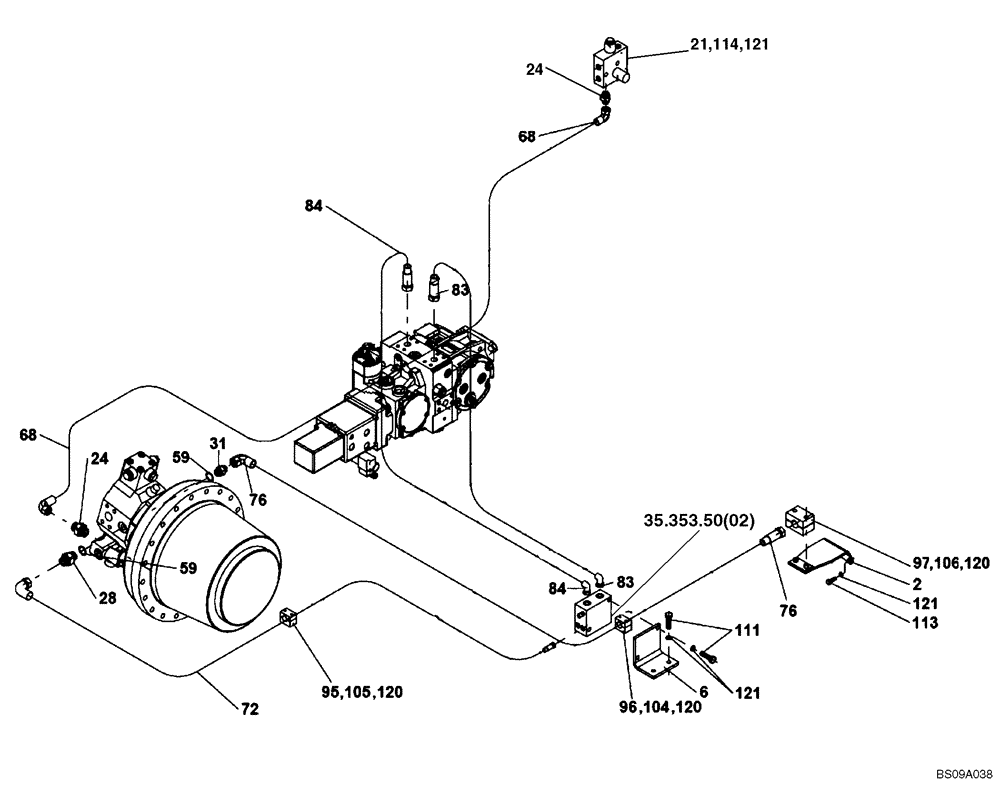

Схема запчастей Case SV212 - (35.353.01[02]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM - ASN DDD003016 (35) - HYDRAULIC SYSTEMS
68
120
97
83
114
68
121
31
105
76
24
106
120
96
121
72
59
121
2
28
6
121
104
113
21
84
59
84
76
120
95
24
35.353.50(02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HYDRAULIC SYSTEM OF TRAVEL, DRUM (ND142127) (GROUP 305)

1шт.

2

ND142148

BRACKET

1шт.

6

ND144902

HOLDER

HOLDER, Replaces ND139614 Holder Used On some Models

1шт.

21

ND123634

VALVE BLOCK

1шт.

21

ND067924

SOLENOID

2шт.

21

84389510

PRESSURE SWITCH

1шт.

24

ND062153

HYD CONNECTOR

2шт.

28

ND138443

HYD CONNECTOR

1шт.

31

ND139010

HYD CONNECTOR

1шт.

59

ND079939

O-RING

2шт.

68

ND127242

HOSE

1шт.

72

ND140468

HOSE

1шт.

76

ND133287

HOSE

1шт.

83

ND139991

HOSE

1шт.

84

ND139992

HOSE

1шт.

95

ND064799

CLAMP

1шт.

96

ND061999

CLAMP

1шт.

97

ND064810

SLEEVE

Clamp

1шт.

104

ND024233

BOLT

2шт.

105

ND024235

BOLT

2шт.

106

ND024236

BOLT

2шт.

111

ND021301

BOLT

2шт.

113

ND021197

BOLT

2шт.

114

ND024264

BOLT

2шт.

120

ND029248

WASHER

4шт.

121

ND035941

WASHER

2шт.
