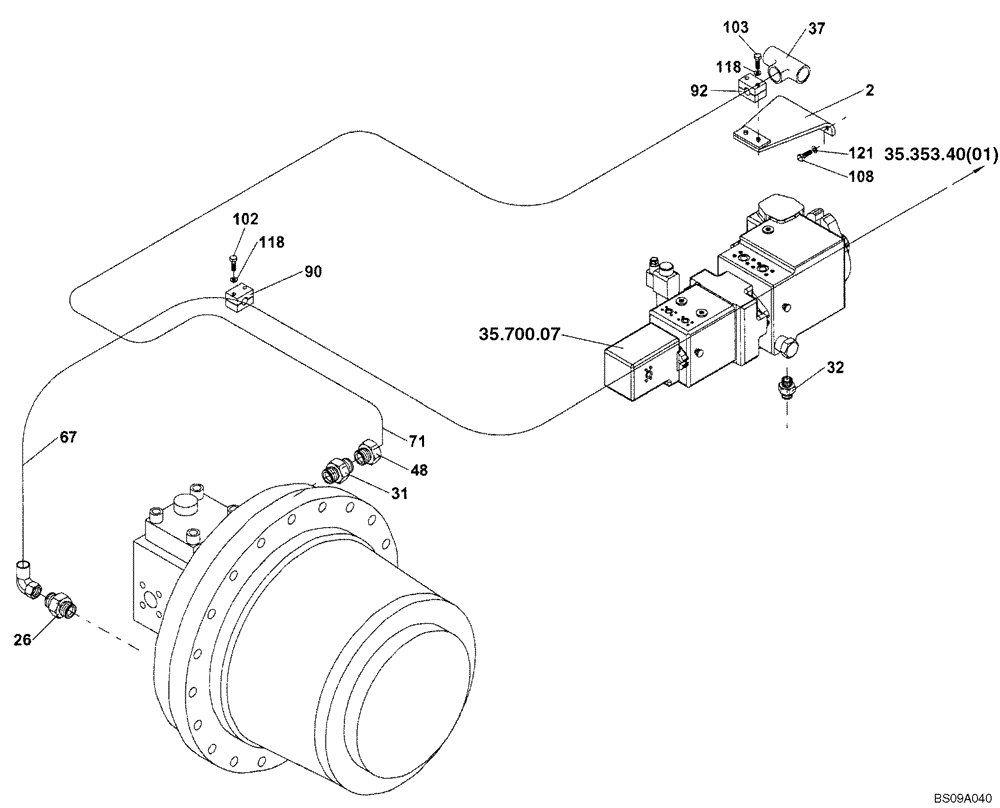

Запчасти Case SV212 (35.353.01[01]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM - BSN DDD003017 (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

HYDRAULIC SYSTEM OF TRAVEL, DRUM (ND133335) (GROUP 305)

1шт.

2

ND103340

SUPPORT

1шт.

26

ND062153

HYD CONNECTOR

1шт.

31

ND062135

HYD CONNECTOR

1шт.

32

ND062136

HYD CONNECTOR

1шт.

37

ND062335

TEE

1шт.

48

ND062433

RESTRICTOR

1шт.

67

ND127242

HOSE

1шт.

71

ND133287

HOSE

1шт.

90

ND064799

CLAMP

1шт.

92

ND064809

CLAMP

1шт.

102

ND024235

BOLT

2шт.

103

ND024234

BOLT

2шт.

108

ND021197

BOLT

2шт.

118

ND029248

WASHER

4шт.

121

ND035941

WASHER

4шт.
