Запчасти Case SV212 (35.310.01) - MANUAL & ELECTRONIC, HOOD & PLATFORM TILT HYDRAULICS - BSN NBNTC3096 (35) - HYDRAULIC SYSTEMS

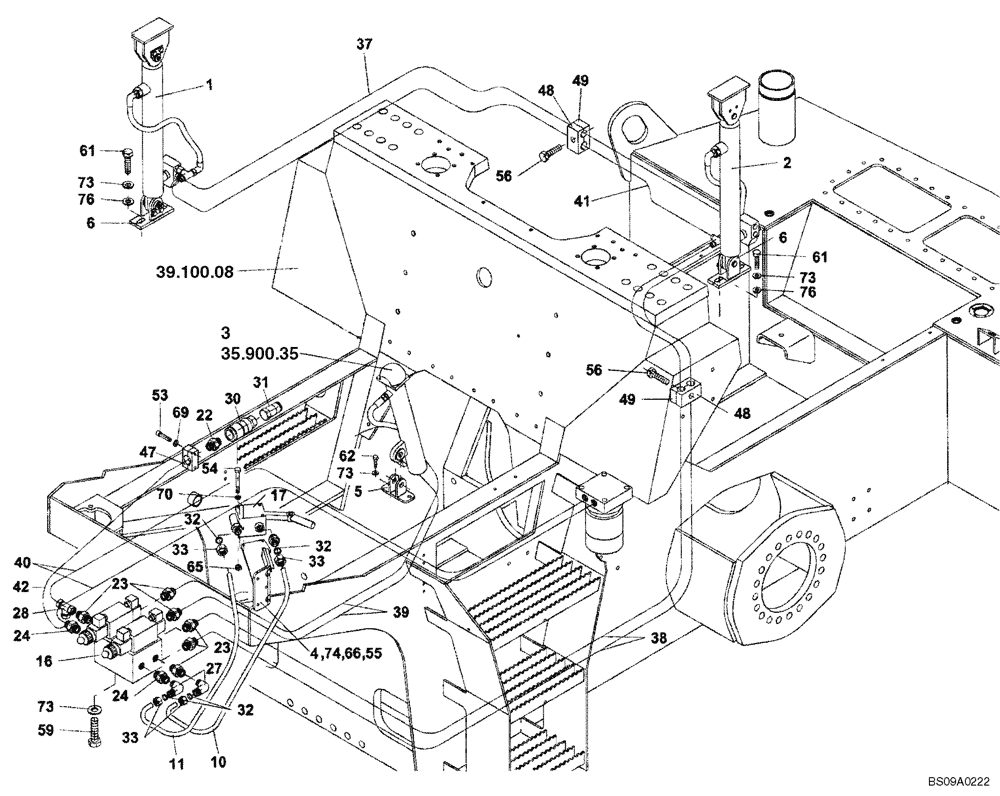

Схема запчастей Case SV212 - (35.310.01) - MANUAL & ELECTRONIC, HOOD & PLATFORM TILT HYDRAULICS - BSN NBNTC3096 (35) - HYDRAULIC SYSTEMS
39.100.08
73
73
74
32
61
33
33
49
76
53
55
73
56
6
11
62
23
4
3
39
48
42
17
53
40
30
10
22
2
31
33
54
6
59
61
27
47
23
76
32
1
70
65
56
73
41
66
5
48
16
24
32
24
28
37
49
38
35.900.35

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HOOD AND PLATFORM TILT HYDRAULICS (ND110353) (GROUP 382)

1шт.

1

ND103127

SERVICE KIT

RH - See Fig 35.900.03

1шт.

2

ND103131

SERVICE KIT

LH - See Fig 35.900.04

1шт.

3

ND103132

SERVICE KIT

Platform - See Fig 35.900.01

1шт.

4

ND126729

HOLDER

1шт.

5

ND126749

BRACKET

1шт.

6

ND126728

BRACKET

2шт.

10

ND127577

FLEXIBLE HOSE

1шт.

11

ND127578

FLEXIBLE HOSE

1шт.

16

ND067789

BLOCK

Electric Tilt, Serial Range: -NBNTC3095

1шт.

16

47715258

SOLENOID VALVE

Electric Tilt, Start Serial: NBNTC3096

1шт.

16-1

ND067925

SOLENOID

Electric Tilt - Not illustrated

2шт.

16

47715259

SOLENOID VALVE

Manual Tilt, Serial Range: -NBNTC3095

1шт.

17

ND067870

HYDRAULIC PUMP

1шт.

22

ND062220

HYD CONNECTOR

1шт.

23

ND062233

HYD CONNECTOR

6шт.

24

ND062234

HYD CONNECTOR

2шт.

27

47386409

90 ELBOW

2шт.

28

ND062313

HYD CONNECTOR

1шт.

30

ND112941

QUICK MALE COUPLING

1шт.

31

ND062386

COVER

1шт.

32

ND062038

SEAL

4шт.

33

ND062045

NUT

4шт.

37

ND132917

HOSE

1шт.

38

ND102093

HOSE,1280.00 mm

2шт.

39

ND102094

HOSE,370.00 mm

2шт.

40

ND102095

HOSE,800.00 mm

2шт.

41

ND132918

HOSE

1шт.

42

ND127245

HOSE

1шт.

47

ND064809

CLAMP

1шт.

48

ND064851

SLEEVE

2шт.

49

ND064807

CLAMP

2шт.

51

ND081828

DECAL

Platform hood tilt

1шт.

53

ND024234

BOLT

2шт.

54

ND021179

BOLT

3шт.

55

ND021182

BOLT

3шт.

56

ND021184

BOLT

2шт.

59

ND021197

BOLT

2шт.

61

ND021310

BOLT

6шт.

62

ND021310

BOLT

6шт.

65

ND021847

NUT

3шт.

66

ND021848

NUT

3шт.

69

ND029248

WASHER

2шт.

70

ND029309

SPRING WASHER

3шт.

72

ND035941

WASHER

2шт.

73

ND035942

WASHER

6шт.

74

ND035940

SPRING WASHER

3шт.

76

ND122456

WASHER

4шт.

Выбрано товаров: 48
