Запчасти Case SV212 (35.000.02) - HYDRAULIC SYSTEMS - SECTION PICTORIAL 2/2 (35) - HYDRAULIC SYSTEMS

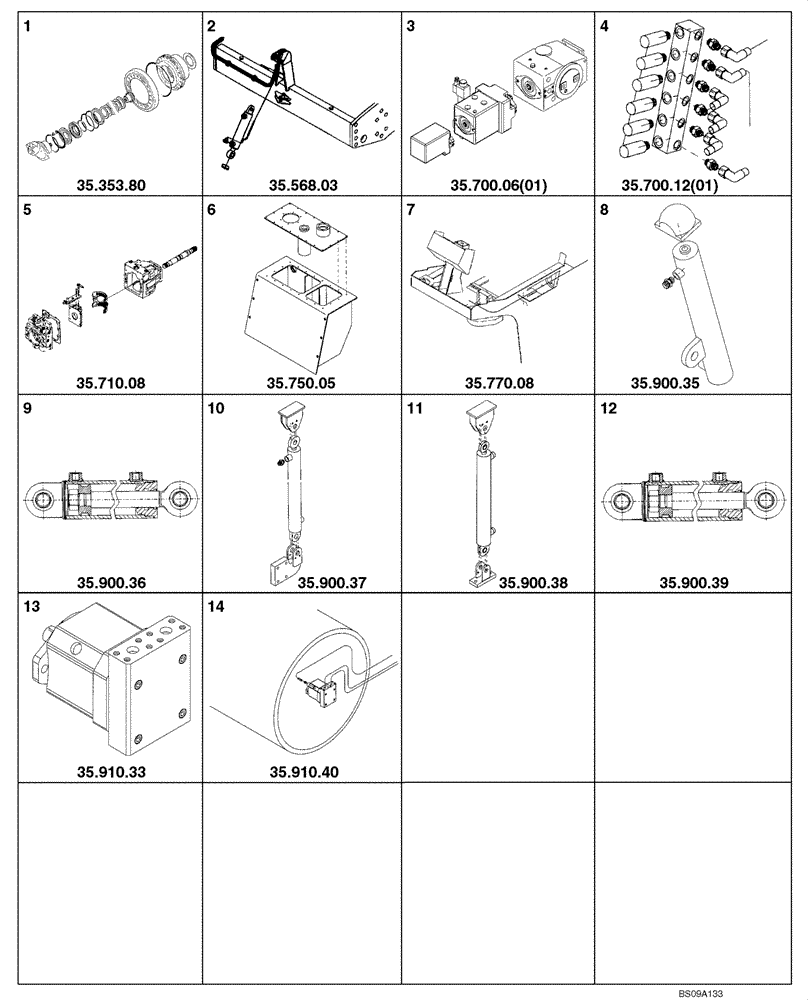

Схема запчастей Case SV212 - (35.000.02) - HYDRAULIC SYSTEMS - SECTION PICTORIAL 2/2 (35) - HYDRAULIC SYSTEMS
4
9
5
35.910.40
1
10
6
35.700.12(01)
14
11
35.910.33
8
35.900.39
35.900.38
35.900.37
35.900.36
35.710.08
35.750.05
35.770.08
35.900.35
35.568.03
35.353.80
12
35.700.06(01)
2
3
7
13

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HYDRAULIC SYSTEMS - SECTION PICTORIAL

1шт.

1

REF

INSTRUCTION

Reduction Gear Assy, Drum - For Service Breakdown See Figure(s) 35.353.80 And 35.353.81

1шт.

2

REF

INSTRUCTION

Dozer Blade HYdraulics - For Service Breakdown See Figure 35.568.03

1шт.

3

REF

INSTRUCTION

Pump, Hydraulic - For Service Breakdown See Figure(s) 35.700.06 Thru 35.700.09

1шт.

4

REF

INSTRUCTION

Lines, Hydraulic Diagnostic - For Service Breakdown See Figure(s) 35.700.12 Thru 35.700.14

1шт.

5

REF

INSTRUCTION

Pump, Hydraulic Travel - For Service Breakdown See Figure 35.710.08

1шт.

6

REF

INSTRUCTION

Tank, Hydraulic W/Electric Pump - For Service Breakdown See Figure 35.750.05

1шт.

7

REF

INSTRUCTION

Sensor, Hydraulic Revolution - For Service Breakdown See Figure 35.770.08

1шт.

8

REF

INSTRUCTION

Cylinder, Hydraulic Platform Lift - For Service Breakdown See Figure 35.900.35

1шт.

9

REF

INSTRUCTION

Seals, Hydraulic Platform Lift Cylinder - For Service Breakdown See Figure 35.900.36

1шт.

10

REF

INSTRUCTION

Cylinder, Hydraulic Hood Lift RH - For Service Breakdown See Figure 35.900.37

1шт.

11

REF

INSTRUCTION

Cylinder, Hydraulic Hood Lift LH - For Service Breakdown See Figure 35.900.38

1шт.

12

REF

INSTRUCTION

Seals, Hydraulic Hood Lift Cylinder - For Service Breakdown See Figure 35.900.39

1шт.

13

REF

INSTRUCTION

Motor, Hydraulic Vibration - For Service Breakdown See Figure(s) 35.910.33 Thru 35.910.36

1шт.

14

REF

INSTRUCTION

Lines, Vibratory Drum - For Service Breakdown See Figure(s) 35.910.40 (01) Thru 35.910.42 (02)

1шт.
