Запчасти Case SV212 (35.000.01) - HYDRAULIC SYSTEMS - SECTION PICTORIAL 1/2 (35) - HYDRAULIC SYSTEMS

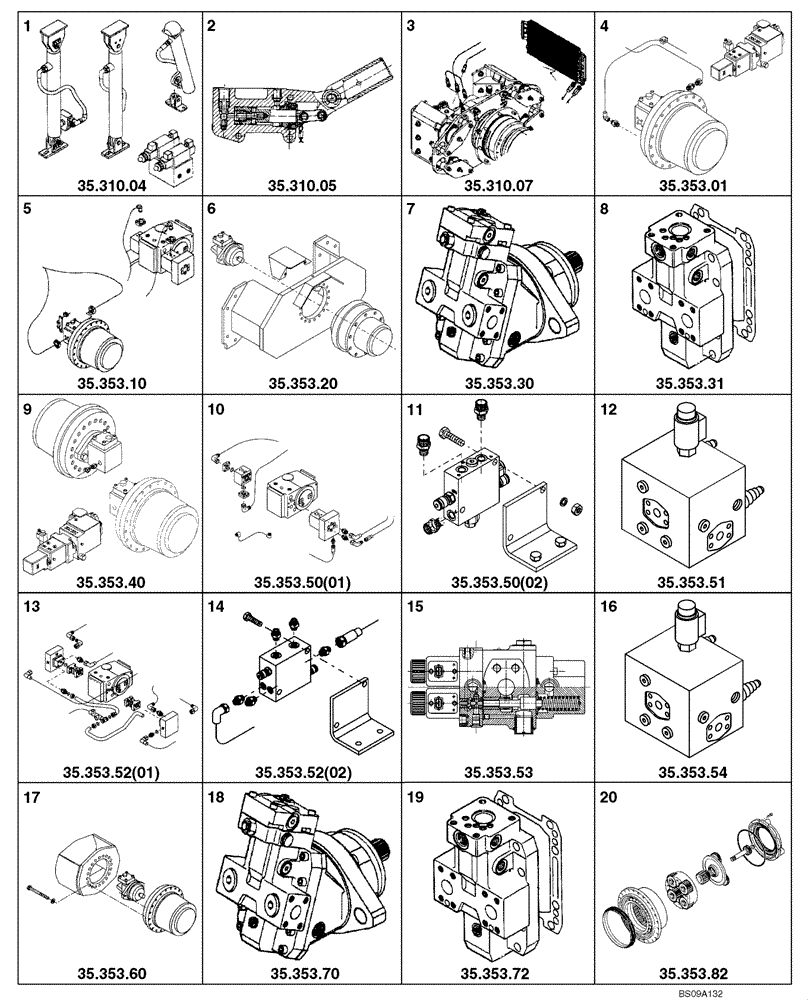

Схема запчастей Case SV212 - (35.000.01) - HYDRAULIC SYSTEMS - SECTION PICTORIAL 1/2 (35) - HYDRAULIC SYSTEMS
35.353.52(01)
9
13
35.353.50(01)
15
10
4
18
2
6
17
19
35.353.01
20
3
11
35.353.52(02)
14
16
1
7
5
12
8
35.353.31
35.310.07
35.310.05
35.310.04
35.353.72
35.353.72
35.353.70
35.353.60
35.353.53
35.353.54
35.353.51
35.353.10
35.353.20
35.353.30
35.353.50(02)
35.353.40

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HYDRAULIC SYSTEMS - SECTION PICTORIAL

1шт.

1

REF

INSTRUCTION

Hood And Platform Tilt Hydraulics - For Service Breakdown See Figure 35.310.04

1шт.

2

REF

INSTRUCTION

Pump, Hydraulic Hand - For Service Breakdown See Figure 35.310.05

1шт.

3

REF

INSTRUCTION

Circuit, Gearbox Cooling - For Service Breakdown See Figure 35.310.07

1шт.

4

REF

INSTRUCTION

Hydraulic System Of Travel, Drum - For Service Breakdown See Figure(s) 35.353.01 (01) Thru 35.353.02 (02)

1шт.

5

REF

INSTRUCTION

Lines, Front Drum Drive - For Service Breakdown See Figure(s) 35.353.10 Thru 35.353.16

1шт.

6

REF

INSTRUCTION

Drum Drive Assy, Front - For Service Breakdown See Figure(s) 35.353.20 Thru 35.353.23

1шт.

7

REF

INSTRUCTION

Motor, Hydraulic Drum Travel - For Service Breakdown See Figure(s) 35.353.30 And 35.353.32

1шт.

8

REF

INSTRUCTION

Regulator, Hydraulic Drum Travel Motor - For Service Breakdown See Figure(s) 35.353.31 And 35.353.33

1шт.

9

REF

INSTRUCTION

Hydraulic System Of Travel, Rear Wheels - For Service Breakdown See Figure(s) 35.353.40 (01) Thru 35.353.41 (02)

1шт.

10

REF

INSTRUCTION

Valve Instal, Rear Drive Circuit - For Service Breakdown See Figure 35.353.50 (01)

1шт.

11

REF

INSTRUCTION

Valve Instal, Rear Drive - For Service Breakdown See Figure 35.353.50 (02)

1шт.

12

REF

INSTRUCTION

Valve, Anti Slip Rear Drive Circuit - For Service Breakdown See Figure 35.353.51

1шт.

13

REF

INSTRUCTION

Valve Instal, Rear Drive Circuit High Traction Anti Slip - For Service Breakdown See Figure 35.353.52 (01)

1шт.

14

REF

INSTRUCTION

Valve Instal, Rear Drive - For Service Breakdown See Figure 35.353.52 (02)

1шт.

15

REF

INSTRUCTION

Valve, Hydraulic Brake Release - For Service Breakdown See Figure 35.353.53

1шт.

16

REF

INSTRUCTION

Valve, High Traction Anti Slip Rear Drive Circuit - For Service Breakdown See Figure 35.353.54

1шт.

17

REF

INSTRUCTION

Drive Assy Of Rear Wheels - For Service Breakdown See Figure(s) 35.353.60 And 35.353.61

1шт.

18

REF

INSTRUCTION

Motor, Hydraulic Rear Wheel Travel - For Service Breakdown See Figure 35.353.70

1шт.

19

REF

INSTRUCTION

Regulator, Hydraulic Rear Travel Motor - For Service Breakdown See Figure 35.353.72

1шт.

20

REF

INSTRUCTION

Reduction Gear Assy, Rear Drive Wheels - For Service Breakdown See Figure 35.353.82

1шт.
