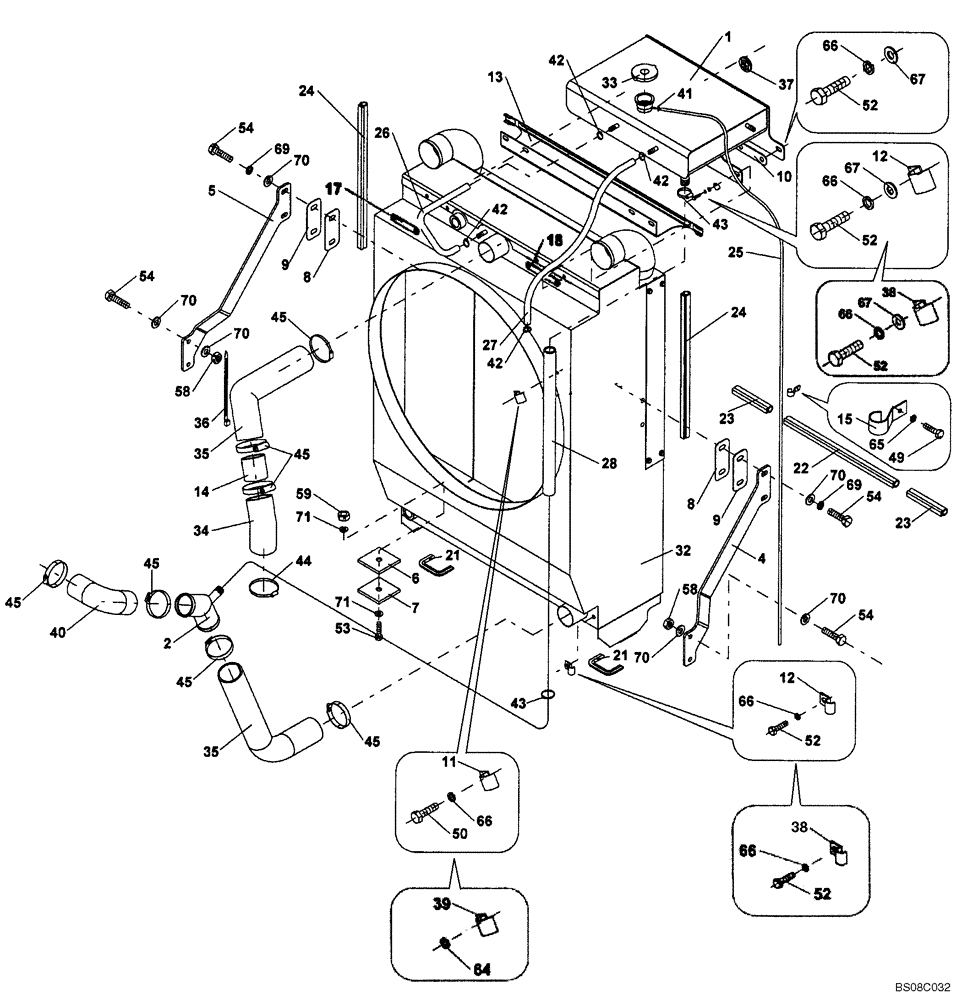

Запчасти Case SV212 (10.406.02) - RADIATOR INSTALLATION (GROUP 126) (ND132425) (10) - ENGINE

REF

INSTRUCTION

RADIATOR INSTALLATION (ND132425) (GROUP 126)

1шт.

1

ND133466

RESERVOIR, COOLANT E

Equalizer Tank

1шт.

2

ND133656

ELBOW UNION

Union Elbow Lower Pipeline

1шт.

4

ND133642

BRACKET, SUPPORTING

Strut

1шт.

5

ND133643

BRACKET, SUPPORTING

Strut

1шт.

6

ND133474

SHIM

Spacing Ring

4шт.

7

ND133471

SHIM

Spacing Ring

4шт.

8

ND133472

SHIM

If Used

4шт.

9

ND133473

SHIM

If Used

4шт.

10

ND133475

SHIM

Spacing Ring

1шт.

11

ND116426

PIPE CLAMP

If Used

1шт.

12

ND117963

CLAMP

If Used

3шт.

13

ND133644

STEEL PLATE

1шт.

14

ND054151

TUBE

1шт.

15

ND133658

PIPE CLAMP

1шт.

17

ND135331

SPACER

If Used

1шт.

18

ND135332

RING

SPACER; If Used

1шт.

21

ND133665

STRAP

2шт.

22

ND132517

SEAL

Packing

1шт.

23

ND132518

SEAL

Packing

2шт.

24

ND116451

SEAL

Side

2шт.

25

ND139633

HOSE WASHER

Replaces ND076325 Hose

1шт.

26

ND132520

HOSE

Deaereting

1шт.

27

ND133663

HOSE

Deaereting

1шт.

28

ND132519

HOSE

1шт.

32

ND131246

RADIATOR

Cooler

1шт.

33

ND090690

COVER

1шт.

34

ND090755

HOSE

1шт.

35

ND079346

HOSE

2шт.

36

ND106910

STRAP

Tie

2шт.

37

ND070149

SIGHTGLASS

1шт.

38

ND135003

CLAMP

If Used

3шт.

39

ND135874

CLAMP

If Used

1шт.

40

ND112306

LARGE HOSE

HOSE,LARGE

1шт.

41

ND069521

CLAMP

1шт.

42

ND069478

CLIP

4шт.

43

ND107319

CLAMP

2шт.

44

ND105775

HOSE CLAMP

1шт.

45

ND118462

CLAMP

Hose

7шт.

49

ND021289

BOLT

1шт.

50

ND021293

BOLT

If Used

1шт.

52

ND021295

BOLT

8шт.

53

ND021312

BOLT

2шт.

54

ND021303

BOLT

8шт.

58

ND034088

NUT

4шт.

59

ND034086

NUT

2шт.

64

ND029290

WASHER

If Used

1шт.

65

ND118926

WASHER

1шт.

66

ND035940

SPRING WASHER

Qty Was 9

8-9шт.

67

ND029249

WASHER

8шт.

69

ND035941

WASHER

8шт.

70

ND035826

WASHER

12шт.

71

ND122456

WASHER

4шт.

73

ND133437

SEALING STRIP

Replaces ND133667 Sealing Strip

1шт.
