(10.254.03) - INTAKE TUBES, ENGINE (GROUP 106) (ND133165)

Запчасти Case SV212 (10.254.03) - INTAKE TUBES, ENGINE (GROUP 106) (ND133165) (10) - ENGINE

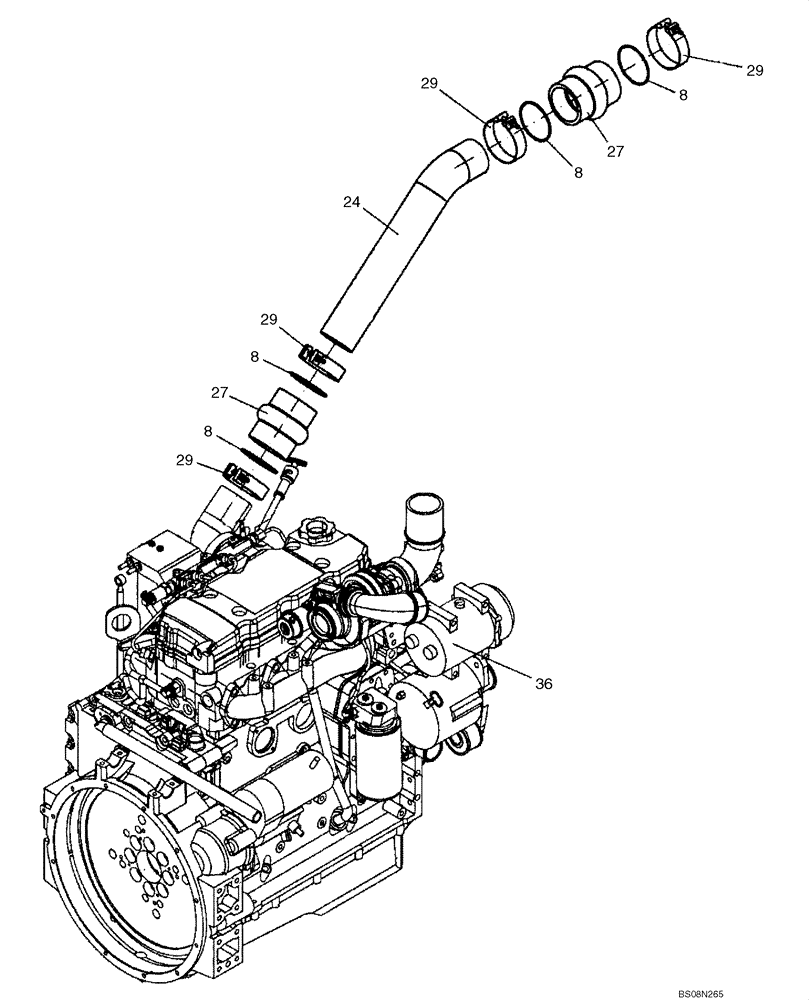

Схема запчастей Case SV212 - (10.254.03) - INTAKE TUBES, ENGINE (GROUP 106) (ND133165) (10) - ENGINE
29
8
27
8
24
29
8
29
36
29
8
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

INTAKE TUBES, ENGINE (ND133165) (GROUP 106)

1шт.

8

ND133527

RING

Replaces ND117593, Ring

2шт.

24

ND133995

TUBE

Replaces ND133177, Tube

1шт.

27

ND133185

COUPLING

2шт.

29

ND135115

HOSE CLAMP

Replaces ND133148, Clamp

4шт.

36

NSS

NOT SOLD SEPARAT

ENGINE, CUMMINS; See Your Nearest Cummins Engine Dealer For Service Of Engine Components

1шт.
