Запчасти Case SV212 (90.154.01) - GLASS AND DOOR PARTS, CAB (GROUP 165-A) (ND001506-A) (90) - PLATFORM, CAB, BODYWORK AND DECALS

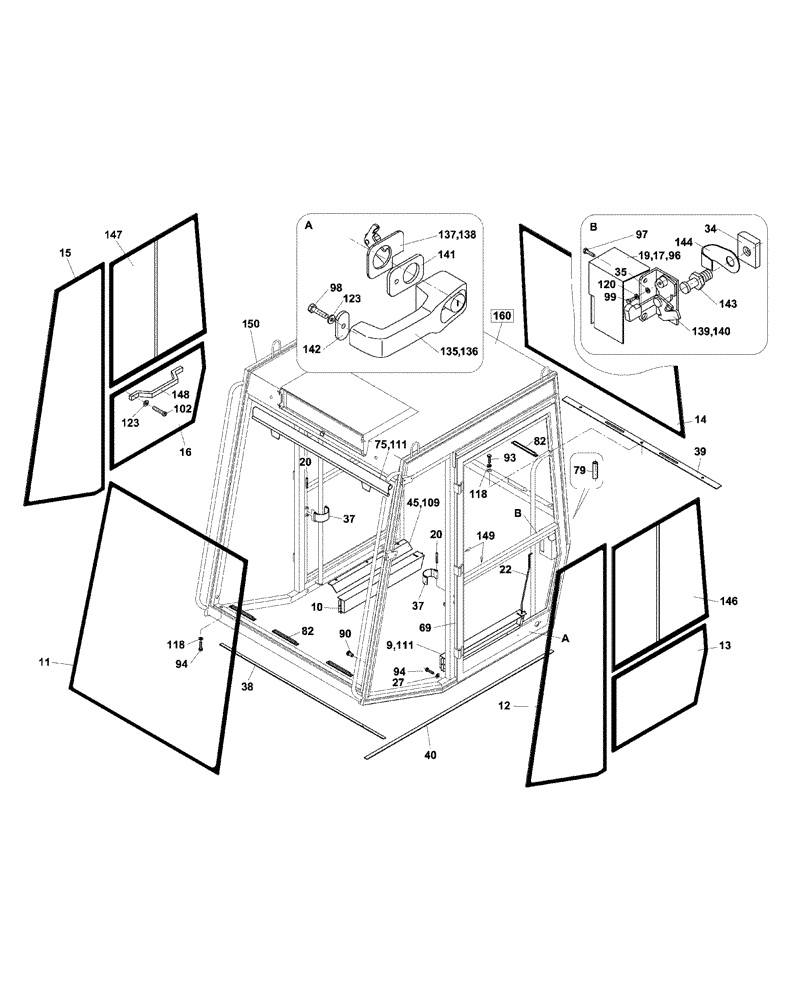

Схема запчастей Case SV212 - (90.154.01) - GLASS AND DOOR PARTS, CAB (GROUP 165-A) (ND001506-A) (90) - PLATFORM, CAB, BODYWORK AND DECALS
142
94
69
93
79
137
123
15
99
146
38
17
13
90
118
141
39
27
34
9
94
144
37
45
136
11
120
102
20
111
14
147
19
40
82
12
123
96
143
111
160
150
149
97
140
82
16
35
10
135
109
118
148
20
138
22
75
98
37
139

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

GLASS AND DOOR PARTS, CAB (ND001506-A) (GROUP 165 A)

1шт.

9

ND103116

COVER

1шт.

10

ND103117

COVER

1шт.

11

ND082385

GLASS

1шт.

12

ND082386

GLASS

1шт.

13

ND100999

CAB GLASS

1шт.

14

ND082390

GLASS

1шт.

15

ND082388

GLASS

1шт.

16

ND101000

CAB GLASS

1шт.

17

ND103149

COVER

1шт.

19

ND108066

PROTECTOR

1шт.

20

ND051029

PIN

4шт.

22

ND103159

TIE-ROD

2шт.

27

ND029292

INSULATING WASHER

7шт.

34

ND103185

NUT

2шт.

35

ND103184

WASHER

4шт.

37

ND117114

BELT

2шт.

38

ND050486

GASKET

1шт.

39

ND029690

GASKET

1шт.

40

ND074328

GASKET

2шт.

45

ND104369

PLATE

2шт.

69

ND101589

DOOR SEAL

8500 mm

1шт.

75

ND063886

SUNSHADE

1шт.

79

ND069511

SWIVEL CONNECTION

2шт.

82

ND090000

PLUG

5шт.

90

ND069933

RIVET

M8

4шт.

93

ND021202

BOLT

M10 x 65

3шт.

94

ND021301

BOLT

M10 x 20

7шт.

96

ND021287

BOLT,M8 x 16

8шт.

97

ND021285

BOLT

M5 x 12

4шт.

98

ND021289

BOLT

M6 x 20

4шт.

99

ND021289

BOLT

M6 x 20

4шт.

102

ND024135

BOLT

4шт.

109

ND025007

SELF-TAP SCREW

M4 x 12

6шт.

111

ND024966

SELF-TAP SCREW

M4 x 12

17шт.

118

ND029250

WASHER

ID 10,5

6шт.

120

ND029248

WASHER

ID 6,4

19шт.

123

ND029309

SPRING WASHER

ID 6,1

22шт.

135

ND101385

HANDLE

LH, For Key See 161

1шт.

136

ND101386

HANDLE

RH, For Key See 161

1шт.

137

ND101387

LEVER

LH

1шт.

138

ND101388

LEVER

RH

1шт.

139

ND101389

LOCK

LH

1шт.

140

ND101390

LOCK

RH

1шт.

141

ND101391

WASHER

2шт.

142

ND101392

WASHER

2шт.

143

ND101393

PIN

2шт.

144

ND101394

COVER

2шт.

146

ND109054

WINDOW

LH

1шт.

146-1

ND140106

LATCH

Window; 80MM Long - Measure Before Ordering - Not Illustrated

2шт.

146-5

ND122651

LATCH

Window; 100MM Long - Measure Before Ordering - Not Illustrated

2шт.

147

ND109055

WINDOW

RH

1шт.

147-1

ND140106

LATCH

Window; 80MM Long - Measure Before Ordering - Not Illustrated

2шт.

147-5

ND122651

LATCH

Window: 100MM Long - Measure Before Ordering - Not Illustrated

2шт.

147-6

47713791

LATCH

Round, Window (Kit, Incl Latch and Hook) - Not Illustrated

2шт.

148

ND078409

HANDLE

250 mm

2шт.

149

ND103219

SEALING STRIP

1шт.

150

ND001504

PLATFORM

1шт.

160

ND001404

CAB FRAME

1шт.

161

ND101395

KEY

1шт.

ND110061

DOOR

LH - Not Shown

1шт.

ND110062

DOOR

RH - Not Shown

1шт.

Выбрано товаров: 62
