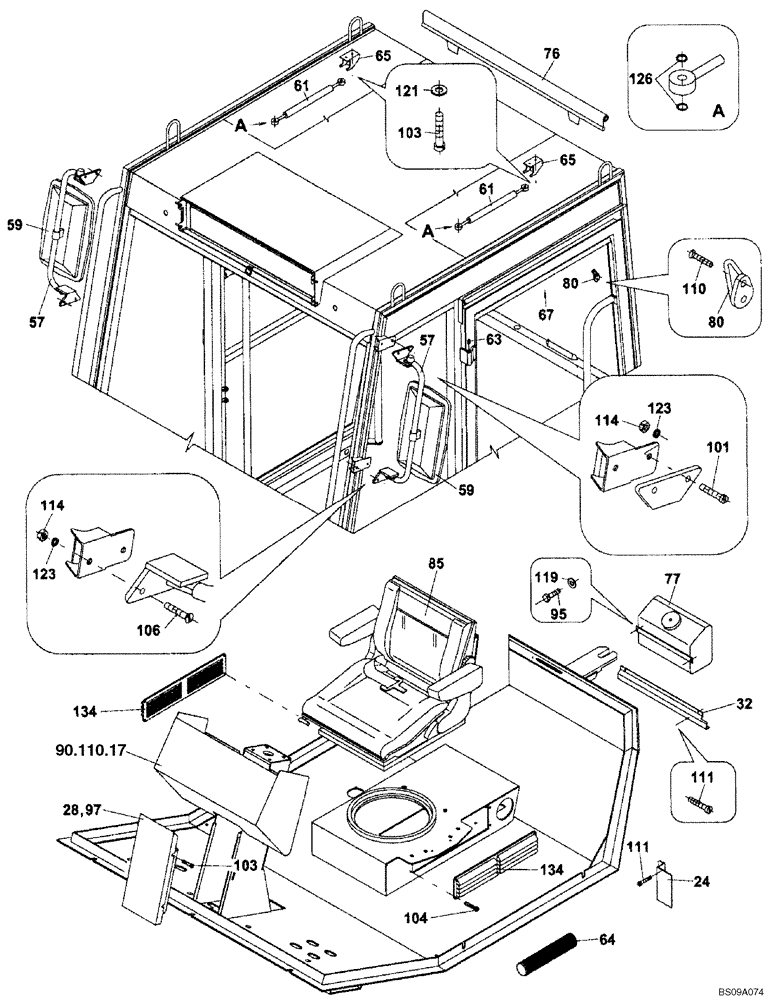

Запчасти Case SV212 (90.120.04) - COMPONENTS / SEAT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

REF

INSTRUCTION

COMPONENTS / DRIVER SEAT, CAB (ND001506) (GROUP 165 C)

1шт.

24

ND103163

CLAMP

1шт.

28

ND031632

COVER

1шт.

32

ND103162

COVER

1шт.

57

ND064405

SUPPORT

2шт.

59

ND064408

MIRROR

2шт.

61

ND064716

GAS STRUT

2шт.

63

ND064758

PLUG

6шт.

64

ND101587

HOSE,170.00 mm

1шт.

65

ND078515

COVER

2шт.

67

ND078508

CLAMP

12шт.

76

ND063885

SUNSHADE

1шт.

77

ND065424

RESERVOIR, WINDSHIEL

24V, Includes Pump

1шт.

80

ND089998

COAT HOOK

2шт.

85

ND118091

DRIVER SEAT

1шт.

95

ND021293

BOLT

M8 x 16

2шт.

97

ND021285

BOLT

M5 x 12

1шт.

101

ND024135

BOLT

M6 x 16

4шт.

103

ND024121

BOLT

2шт.

104

ND024109

BOLT

8шт.

106

ND024381

SCREW

M6 x 16

4шт.

110

ND025017

BOLT

M4 x 16

1шт.

111

ND024966

SELF-TAP SCREW

M4 x 12

1шт.

114

ND021847

NUT

M6

1шт.

119

ND029249

WASHER

ID 8,4

2шт.

121

ND029247

WASHER

ID 5,3

1шт.

123

ND029309

SPRING WASHER

ID 6,1

1шт.

126

ND069816

SNAP RING

ID 10

4шт.

134

ND064524

GRILLE

2шт.
