Запчасти Case SV212 (90.120.02) - SEAT ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

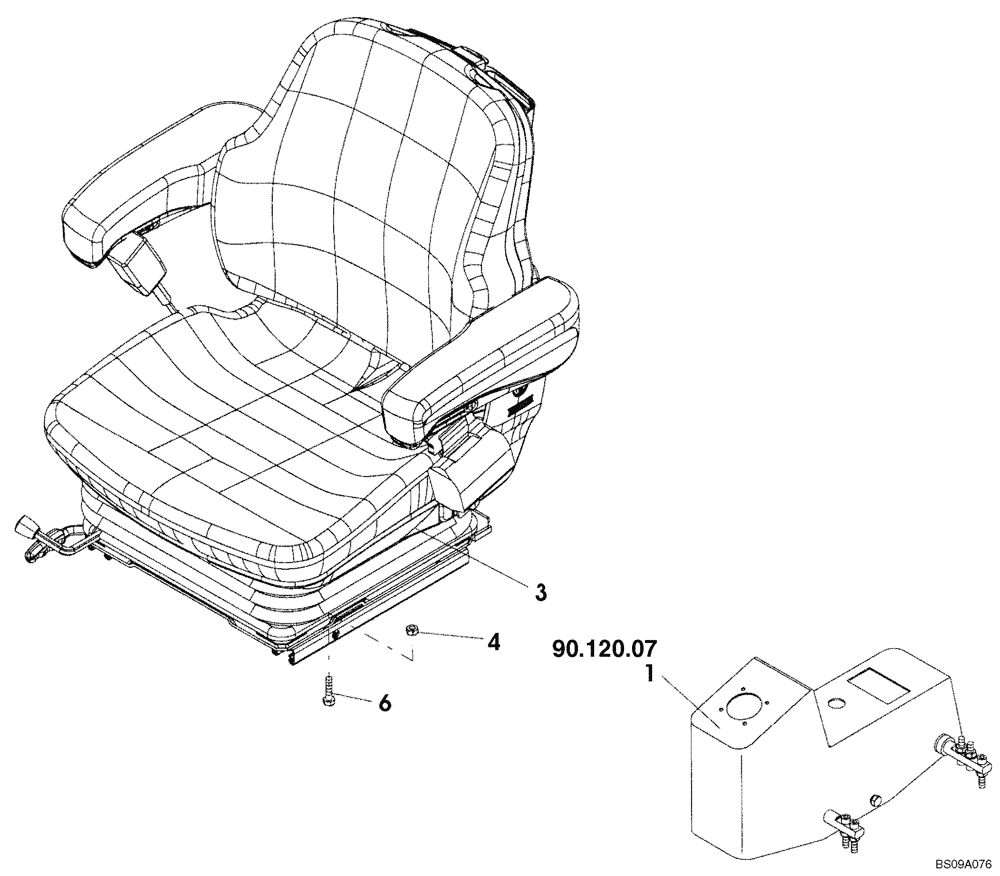

Схема запчастей Case SV212 - (90.120.02) - SEAT ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.07
6
6
4
3

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SEAT ASSY (ND126721) (GROUP 158)

1шт.

1

ND115395

PANEL

1шт.

3

ND114822

DRIVER SEAT

Includes "Operator Present" Seat Switch ND124384

1шт.

3

ND124608

ARMREST

LH

1шт.

3

ND124609

ARMREST

RH

1шт.

3

ND124607

SEAT COVER

Cushioin, Fabric (Seat & Back)

1шт.

3

ND124384

LIMIT SWITCH

"Operator Present" Seat Switch Not Illustrated

1шт.

3

ND121796

CASE

Manual Holder

1шт.

4

ND027301

NUT

4шт.

6

ND029249

WASHER

4шт.

Выбрано товаров: 10
