(90.115.01) - PLATFORM (GROUP 155 P) (ND106157)

Запчасти Case SV212 (90.115.01) - PLATFORM (GROUP 155 P) (ND106157) (90) - PLATFORM, CAB, BODYWORK AND DECALS

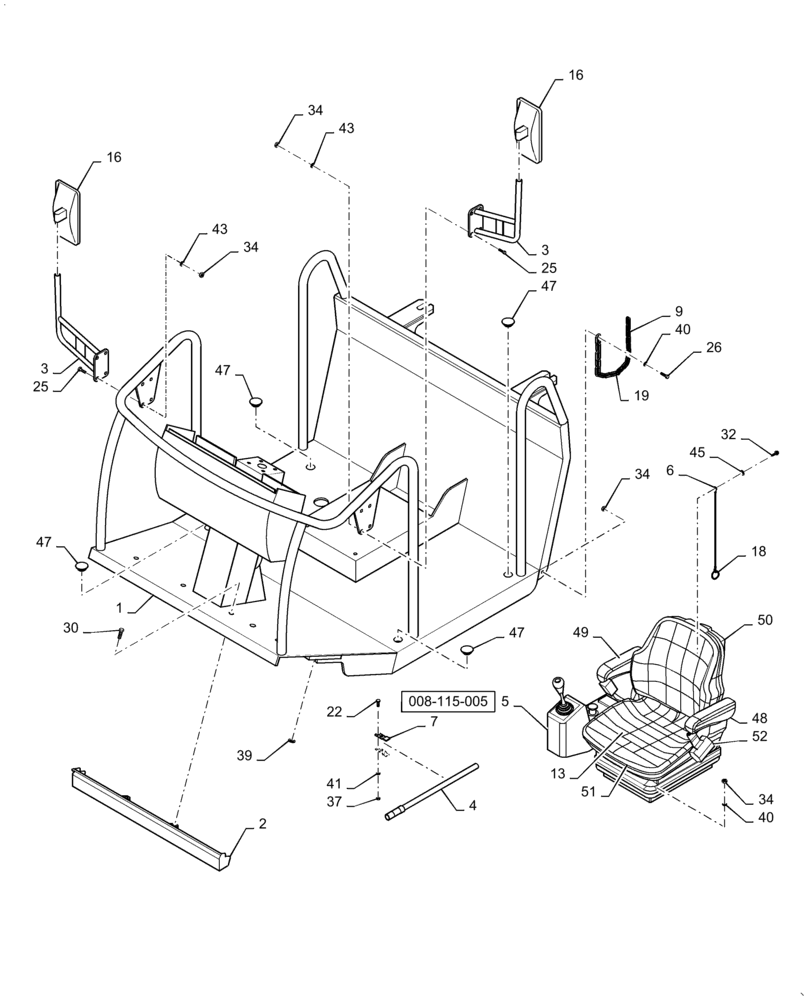

Схема запчастей Case SV212 - (90.115.01) - PLATFORM (GROUP 155 P) (ND106157) (90) - PLATFORM, CAB, BODYWORK AND DECALS
45
16
32
25
18
008-115-005
50
9
47
51
26
43
16
4
52
40
1
25
3
47
39
13
22
34
6
34
47
37
19
5
7
40
30
43
2
34
48
49
3
34
47
41
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

PLATFORM (ND106157) (GROUP 155 P)

1шт.

1

ND106158

PLATFORM

1шт.

2

ND029730

COVER

1шт.

3

ND106210

HOLDER

Mirror

2шт.

4

ND108074

PIPE

Complete; See Figure 09-49 (01) For Service Breakdown

1шт.

5

ND115395

PANEL

1шт.

6

ND117962

CABLE

1шт.

7

ND109488

CLAMP

Spring

2шт.

9

ND050824

LINK CHAIN

1шт.

13

ND137433

SEAT

Operator, Black Vinyl; Includes ND124384

1шт.

14

ND124384

LIMIT SWITCH

Seat Switch Not Illustrated

1шт.

15

ND081592

DECAL

Hearing Protection

1шт.

16

ND064408

MIRROR

2шт.

18

ND073401

RING

1шт.

19

ND101585

PLASTIC-RUBBER TUBE

1шт.

22

ND021290

BOLT

2шт.

25

ND021295

BOLT

M8 x 25

8шт.

26

ND021293

BOLT

M8 x 16

2шт.

30

ND024388

SCREW

M8 x 12 Countersink

4шт.

32

ND025008

SELF-TAP SCREW

Self Tapping

1шт.

34

ND021848

NUT

13шт.

37

ND027300

NUT

2шт.

39

ND029266

WASHER

ID 10

8шт.

40

ND029249

WASHER

ID 8,4

6шт.

41

ND029248

WASHER

4шт.

43

ND035940

SPRING WASHER

ID 8 Spring

8шт.

45

ND037446

WASHER

1шт.

47

ND145317

PLUG

4шт.

48

ND124608

ARMREST

LH

1шт.

49

ND124609

ARMREST

RH

1шт.

50

ND121796

CASE

1шт.

51

ND121795

SEAT COVER

Bottom and Back

1шт.

52

ND137124

SEAT BELT

1шт.
