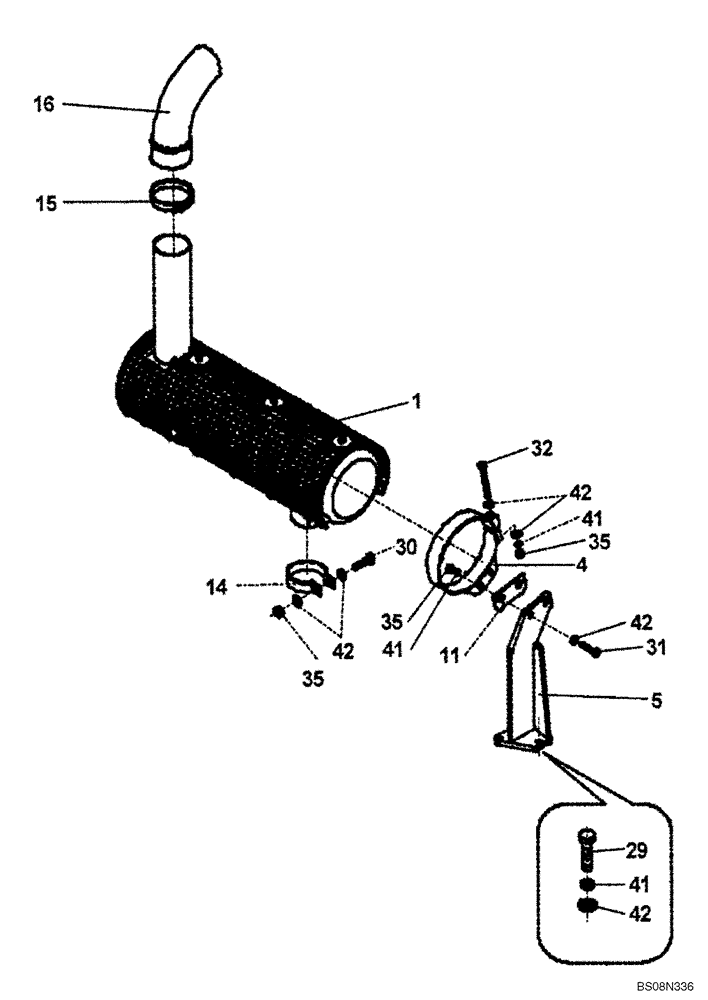

Запчасти Case SV212 (10.254.01) - MUFFLER, ENGINE EXHAUST (GROUP 106) (ND131863) (10) - ENGINE

REF

INSTRUCTION

MUFFLER, ENGINE EXHAUST (ND131863) (GROUP 106)

1шт.

1

ND133868

MUFFLER

Exhaust, Serial Range: -NENTC3636

1шт.

1

47847581

MUFFLER

, Start Serial: NENTC3637

1шт.

4

ND103369

CLAMP

Use With Muffler ND133868

1шт.

5

ND135340

BRACKET, SUPPORTING

Replaces ND131904 Bracket Supporting, Serial Range: -NENTC3636

1шт.

5

47847583

SUPPORT

, Start Serial: NENTC3637

1шт.

11

ND131946

BACKING PLATE

Spreader; If Used

1шт.

14

ND116083

CLAMP

1шт.

15

ND098745

CLAMP

1шт.

16

ND106299

EXTENSION

1шт.

29

ND021303

BOLT

5шт.

30

ND021304

BOLT

3шт.

31

ND021305

BOLT

2шт.

32

ND021206

BOLT

1шт.

35

ND034088

NUT

4шт.

41

ND035941

WASHER

6шт.

42

ND029266

WASHER

6шт.
